86
EN
Cod. 3541V991 - Rev. 06 - 10/2022
OMNIA ST 3.2

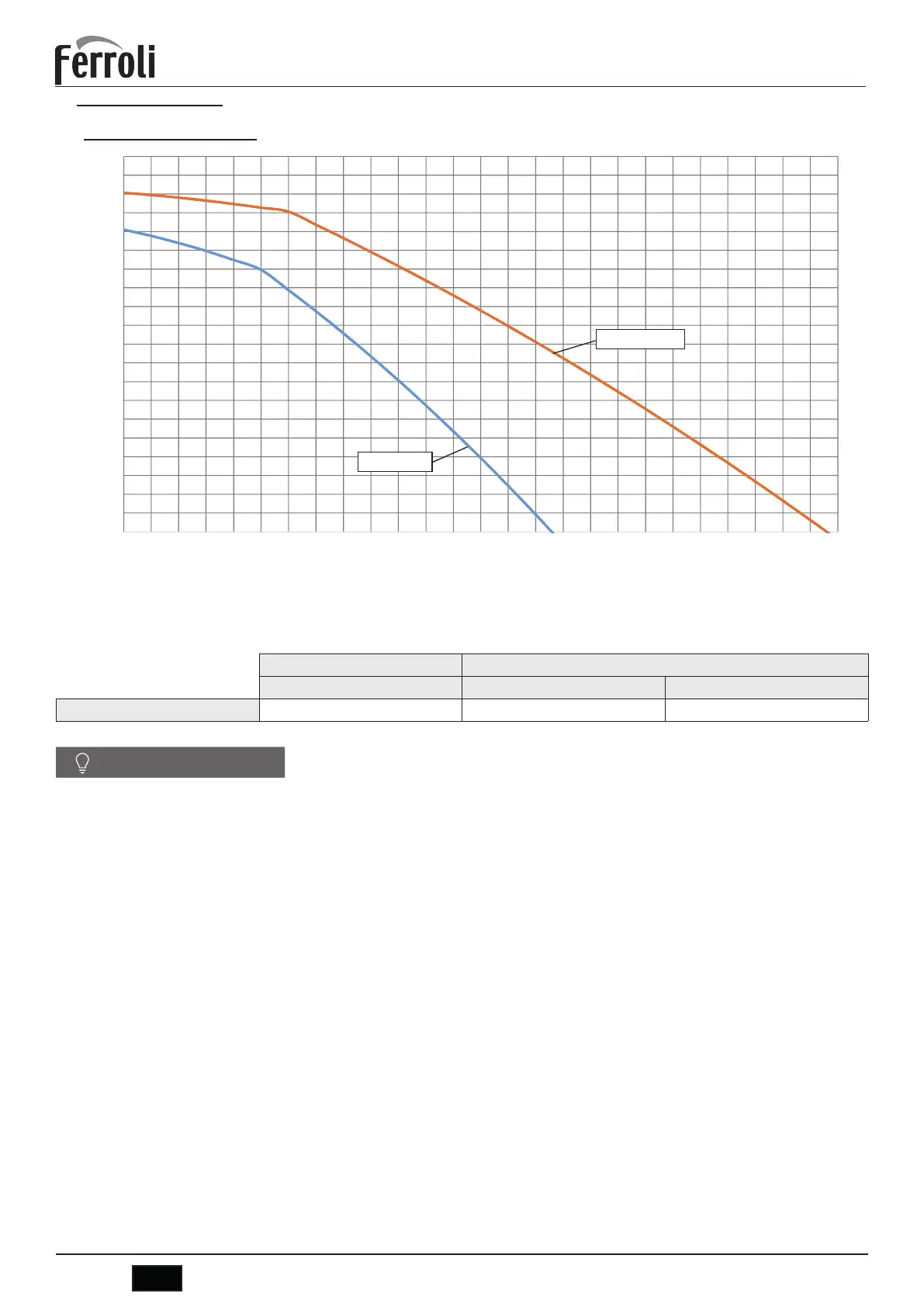

3.4 Available static pressure
3.4.1 Heat pump circulator indoor unit
0
10
20
30
40
50
60
70
80
90
100
600 800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200
Prevalenza utile [kPa]
Portata [l/h]
OMNIA ST - Prevalenza utile
Prev_ut 10 [kPa] Prev_ut 16 [kPa] Prev_ut 10 [kPa] Prev_ut 16 [kPa]
Mod. 16 - 16T
Mod. 10
Watel flow rate [l/h]
Available static pressure [kPa]
The graph provides the available static pressure granted by the internal circulator (P_i) a the maximum speed. The internal circulator speed is managed by the hydronic
board in order to insure the correct water temperature difference as in the table below:
Cooling mode Heating mode
For all set point Set point <50°C Set point >50°C
ΔT= T
Win
-T
Wout
5 5 8
NOTE
For the correct operation of the system, a hydraulic bypass must be provided on the system capable of ensuring sufficient water circulation to avoid the
blocking of the heat pump due to lack of water flow alarm.
This is, for example, essential if the system includes zone valves or thermostatic valves which, if they go into partial or complete closure, would result in
a reduction / lack of water flow with consequent water flow switch alarm and therefore the blocking the heat pump.
