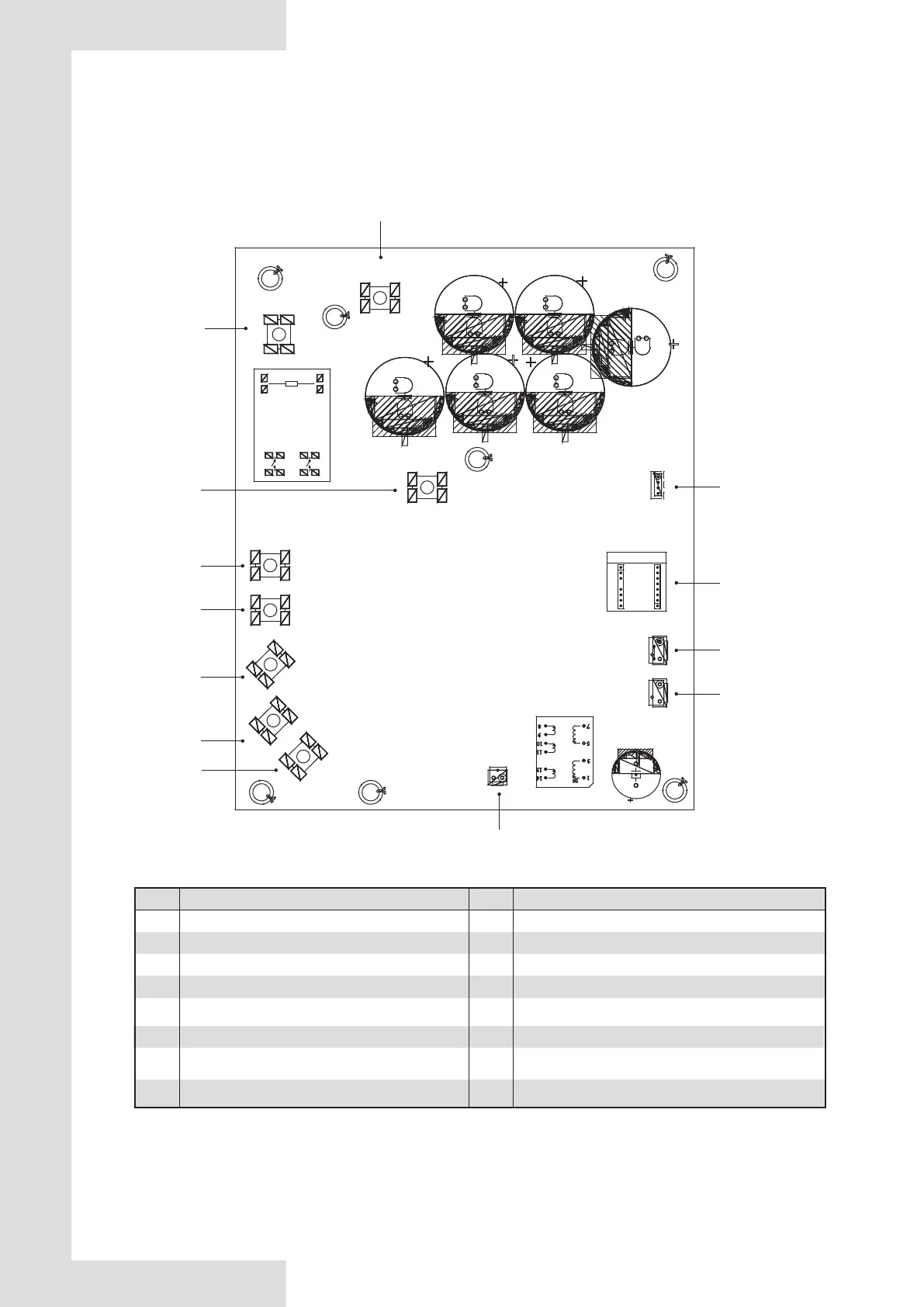

9.4 12~16kW 3-phase units
1) PCB A， Inverter module
Output port for +15V(CN20)
Compressor connection port V (CN18)
Input port P_in for IPM module (CN1)
Input port P_out for IPM module (CN5)
1
2
3
4
5
6
7
Assembly unit Assembly unitCoding
Coding
9
10
11
12
13
8
Compressor connection port W
(CN19)
Compressor connection port U (CN17)
Power Input port L3 (CN15)
Power Input port L1 (CN16)
Power Input port L2 (CN7)
Port for communication with PCB B (CN8)
PED board(CN22)
Port for high pressure switch (CN23)
Port for communication with PCB C(CN2)
CN17
CN1
CN23
CN2
CN8
CN22
CN20
CN15
CN19
CN18
CN7
CN16
CN5
1
2
5
4
3
6
8
9
7
13
10
11
12
