Example of address assignment of outputs

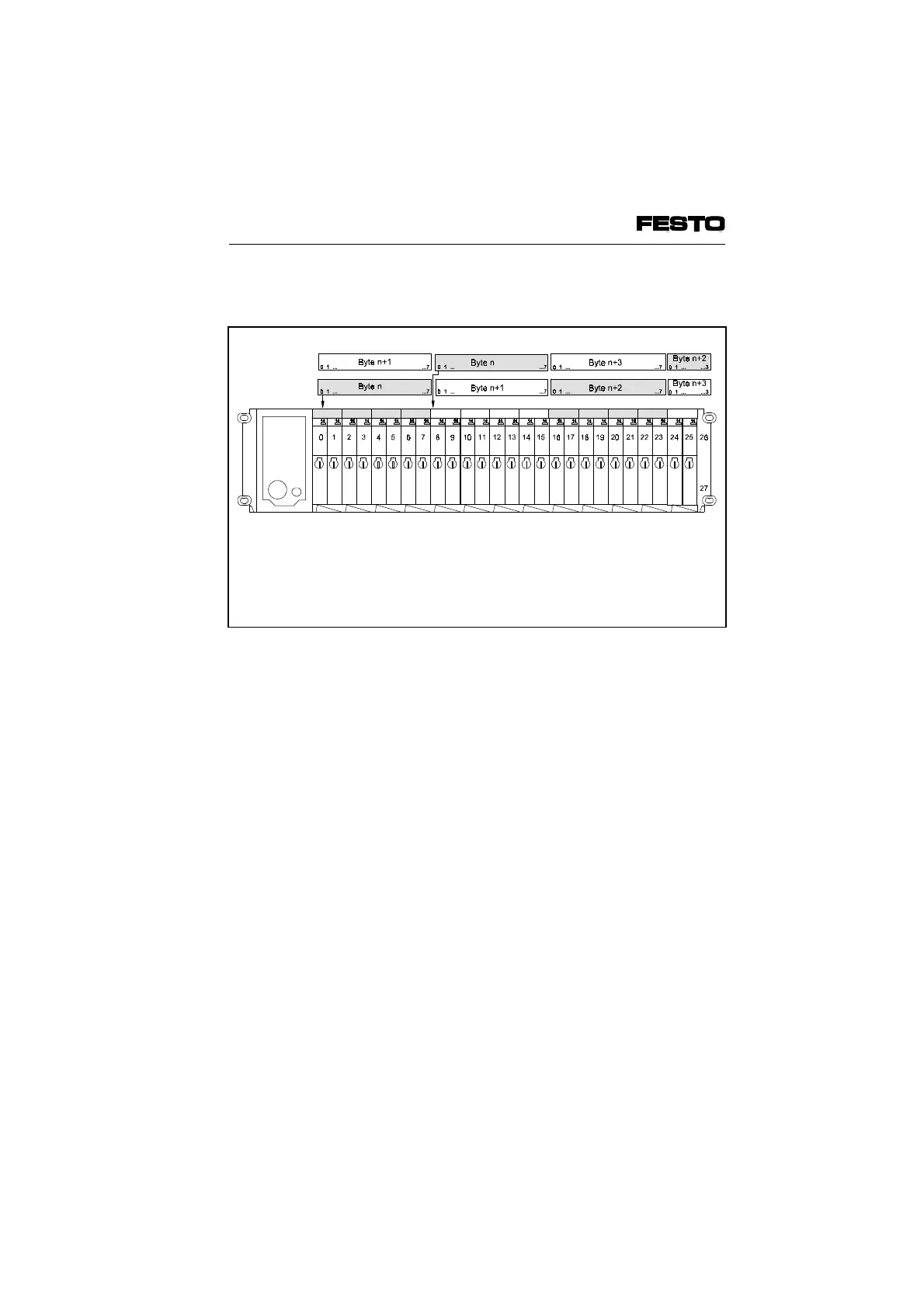

Fig. 4/11: Address assignment of outputs on controllers from Siemens
and others on the INTERBUS
PLEASE NOTE
If two adresses are:
• lower value address ⇒ pilot solenoid 14
• higher value address ⇒ pilot solenoid 12
Standard mode
Siemens mode
