Plug selection Cable selection*) Cable selections
Description:
9-pin plug with socket
insert, can be screened
with sleeve/housing
Description:
LIYCY 3x2x0,25 mm
2
Remote bus
incoming
Screening on
sleeve both sides
Designation:
a) Straight socket
b) Angled socket
c) Angled socket
locking)
Type:
IBS RBC METER-T
Order no. CONINVERS:
a) RC-09 S 1 N 128 049
b) RC-09 S 1 N 12T 049
c) RC-09 S 3 N 12T 0Z0
Order no. Phönix:
28 06 28 6
Order from:
Fa. CONINVERS GmbH
Daimlerstr. 13
D-71083 Herrenberg
Order from:
Fa. Phoenix
Postfach 1341
D-32 819 Blomberg
Description:
9-pin plug with plug
insert, can be screened
with sleeve/housing
Description:
LIYCY 3x2x0,25 mm
2
Remote bus
outgoing
Designation:
a) Straight socket
b) Angled socket
c) Angled socket
locking)
Type:
IBS RBC METER-T
Order no. CONINVERS:
a) RC-09 P 1 N 128 049
b) RC-09 P 1 N 12T 049
c) RC-09 P 3 N 12T 0Z0
Order no. Phönix:
28 06 28 6
Order from:
Fa. CONINVERS GmbH
Daimlerstr. 13
D-71083 Herrenberg
Order from:
Fa. Phoenix
Postfach 1341
D-32 819 Blomberg
*) Please ensure that the plugs specified only suit this cable. This is because
the screening sleeve must fit the cable exactly. If cables with different outer
diameters are used, other plugs must be ordered.

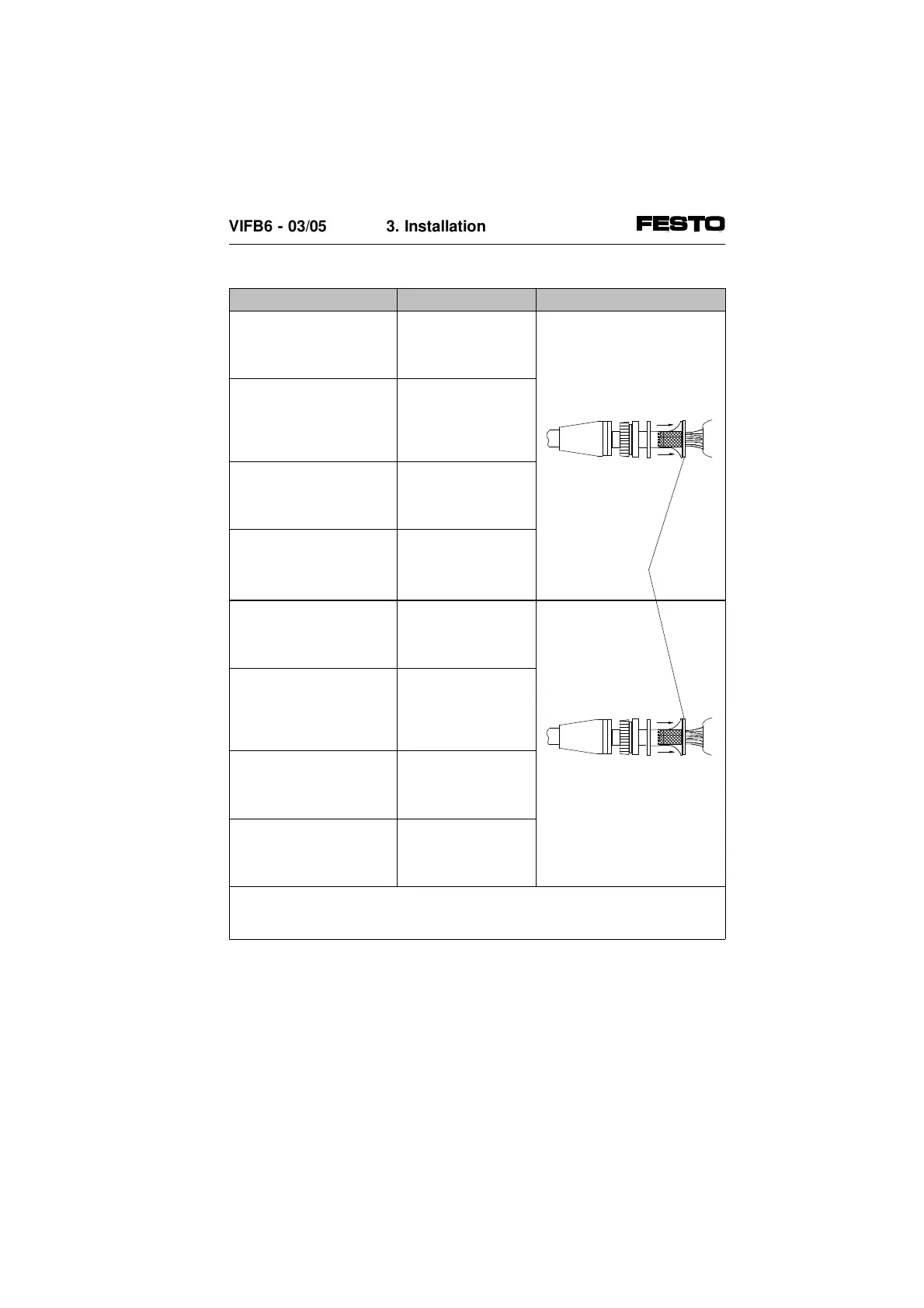

Fig. 3/18b: Connecting the remote bus for non-floating operation
AAAA
AAAA
AAAA
AAAA
A
A
A
A
AAAA
AAAA
AAAA
AAAA
A
A
A
A
VIFB6 - 03/05 3. Installation
9809c 3-43
