– Disassembly:
1. Insert a flat-blade screwdriver in the mounting latch on the underside of the controller.
2. Hold the controller and lever the mounting latch downwards. The latch remains in the open
position. Repeat the process for the second mounting latch. You can now remove the controller
from the H-rail.
Note
Further information on assembling or disassembling the controller or individual extension modules
can be found in the manuals of the respective controller manufacturers.
2.1.2 Festo

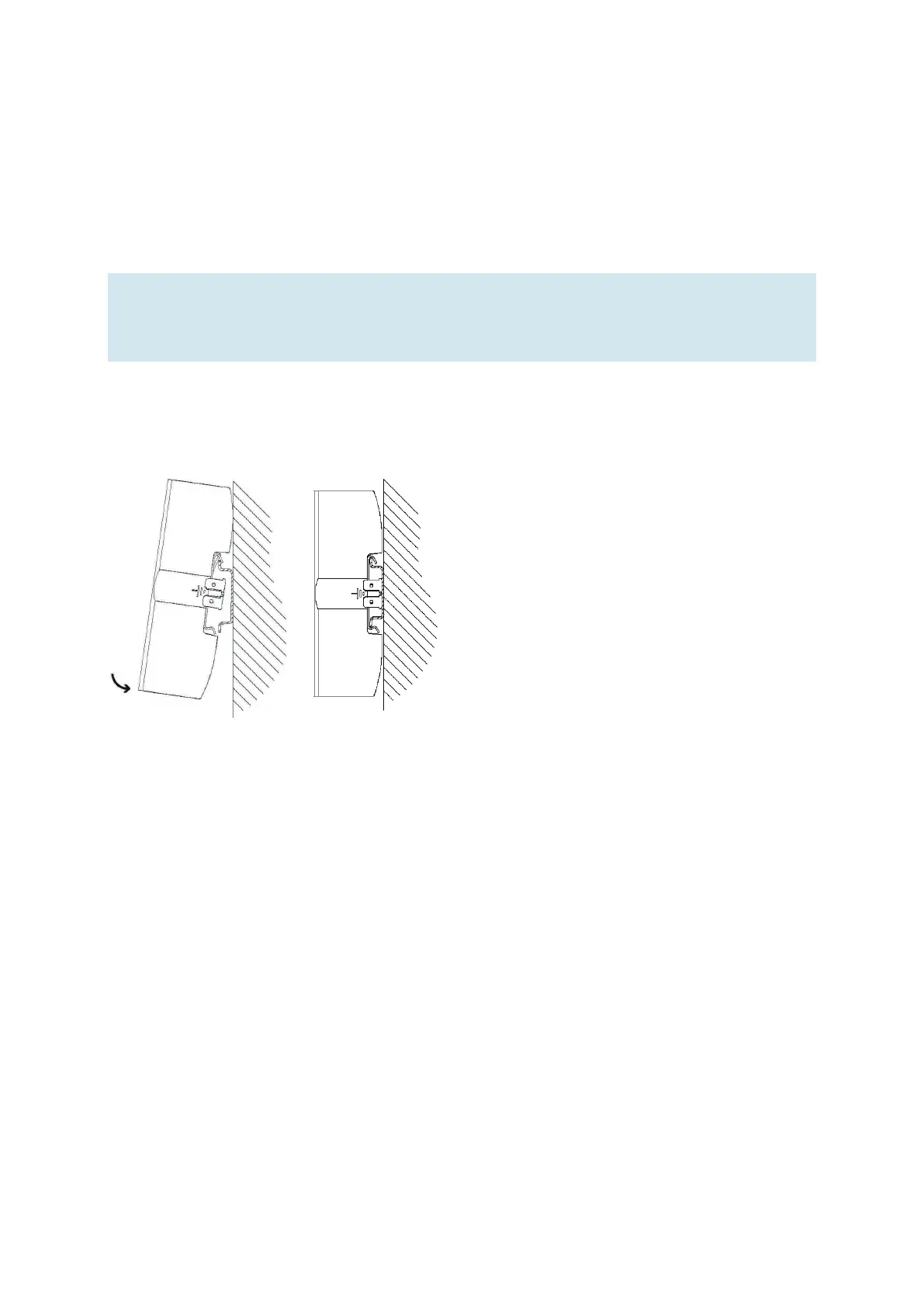

– Assembly:
1. Tilt the controller and lean it against the wall above the H-rail.
2. Move the controller downwards until the H-rail clips touch the H-rail.
3. Press the lower half of the controller against the H-rail.
– Disassembly:
1. Hold the controller housing by placing your thumb on the underside of the controller and the
fingers of the same hand on the top.
2. Lever the controller away from the H-rail by applying moderate pressure to the underside with
your thumb and pulling it towards you. A distinct click lets you know that the device is now
unlatched and can be removed from the H-rail.
