17 19-inch module 24 V
17.1 Design and function

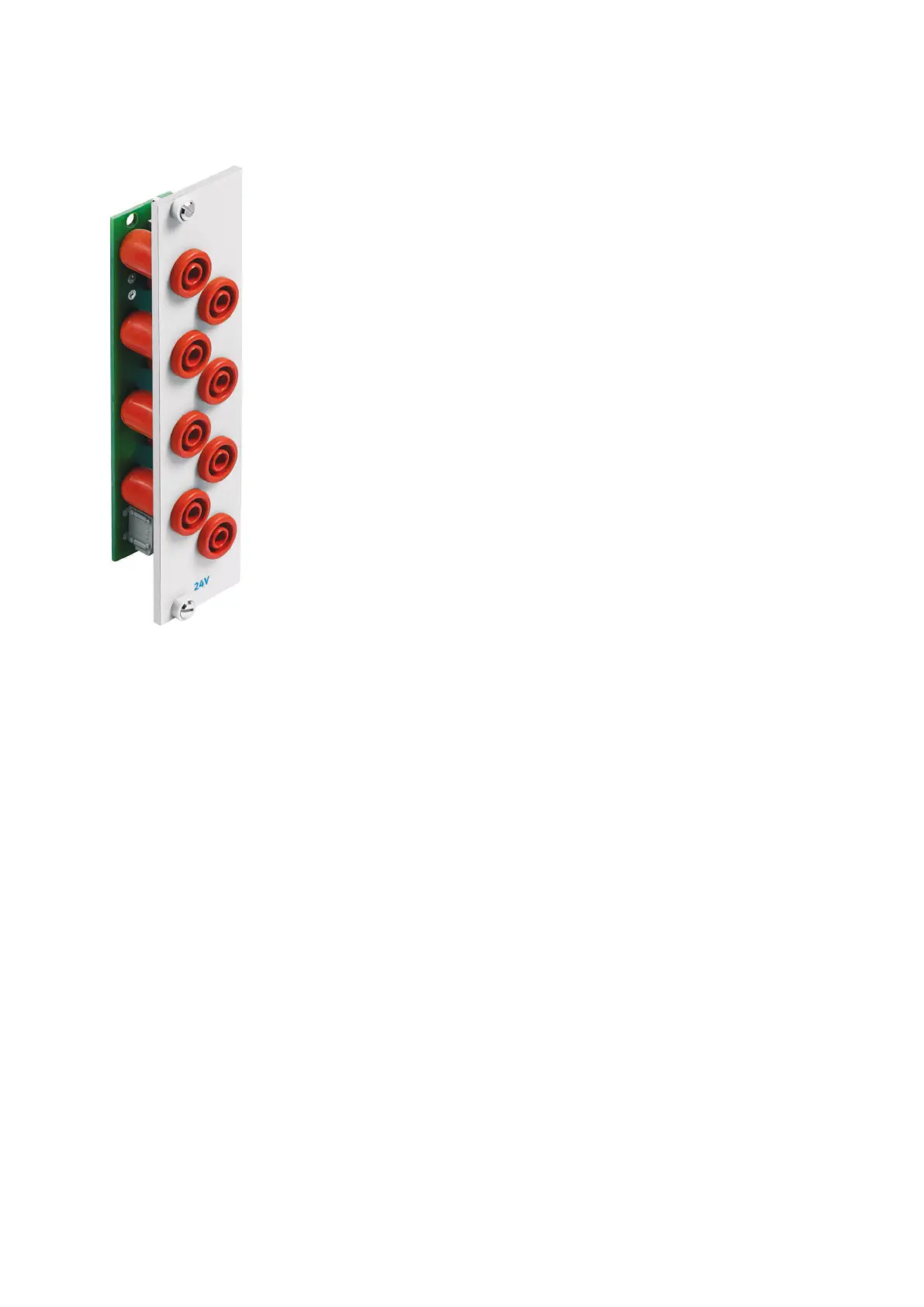

The 19-inch module 24 V extends the scope of functions of your PLC EduTrainer
®
system. It’s equipped with
eight 24 V outputs laid out as 4 mm safety sockets.
17.2 Commissioning
1. Connect 24 V supply voltage via the single-pole terminal.
2. Screw the 19-inch module into the rack.
