13 19-inch module for 37-pin system connector
40 © Festo Didactic 759614
13.3 Technical data
Electrical/Mechanical
Operating voltage 24 V DC
Input voltage Max. 24 V DC
Output current
Module: max. 0.5 A per output
PLC: see PLC manual
Connection, outputs 37-pin Sub-D socket
Connection, inputs 37-pin Sub-D plug
Front-plate width 9 HP
Subject to change

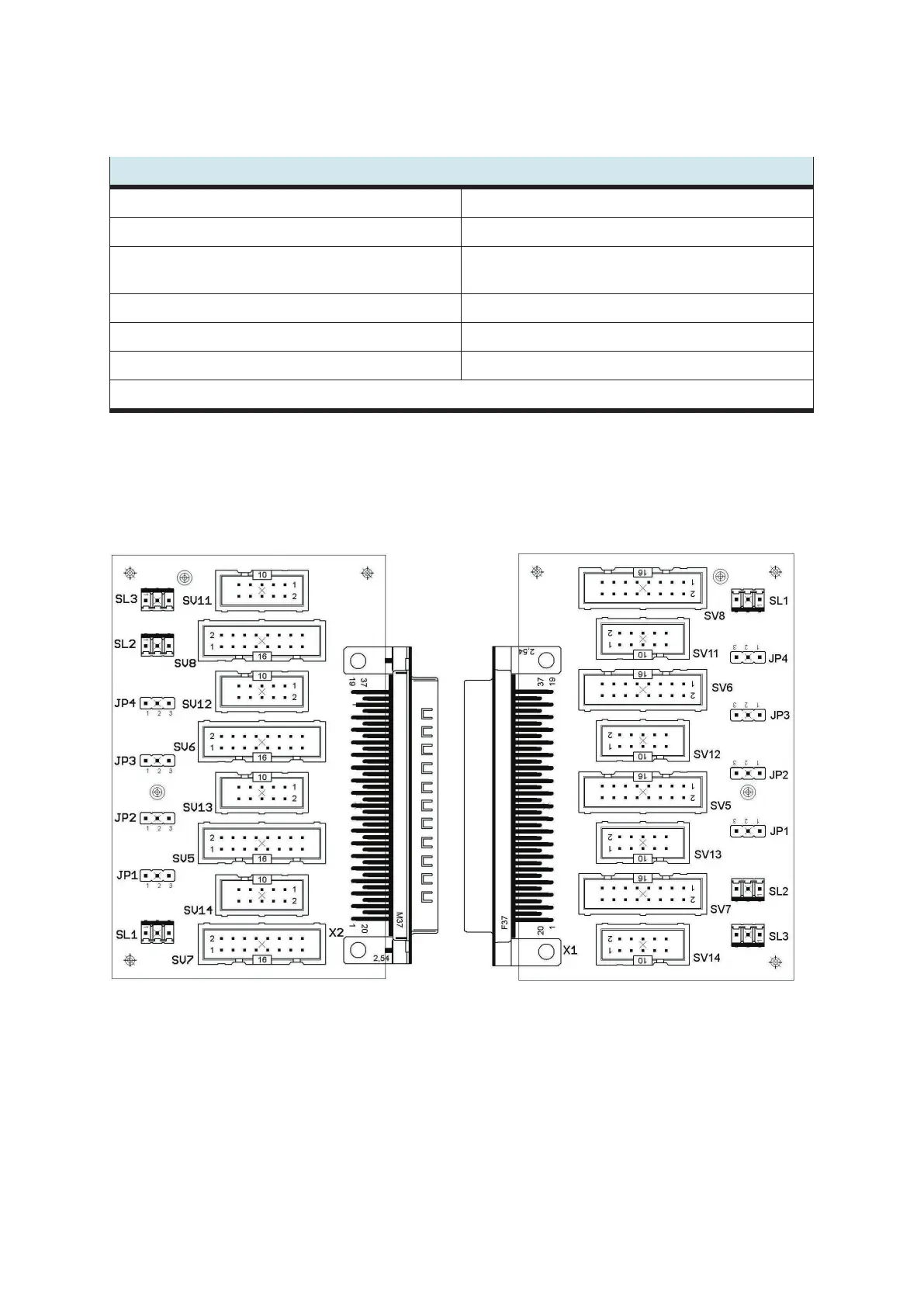

13.4 Contact allocation table
Plugs PLC inputs Sockets PLC outputs
SV14, SV13, SV12, SV11: 10-pin outputs SV14, SV13, SV12, SV11: 10-pin inputs
SV7, SV5, SV6, SV8: 16-pin outputs SV7, SV5, SV6, SV8: 16-pin inputs
JP1, JP2, JP3, JP4: Supply via 24 V or 24 V NA JP1, JP2, JP3, JP4: Supply via 24 V or 24 V NA
SL1, SL2, SL3: Connections for 24 V DC supply voltage SL1, SL2, SL3: Connections for 24 V DC supply voltage
