Festo EduTrainer Compact - 3.2 EduTrainer Universal Holder System with Power Supply; 3.2.1 Structure and Function

3 Holder systems
© Festo Didactic 759614
17

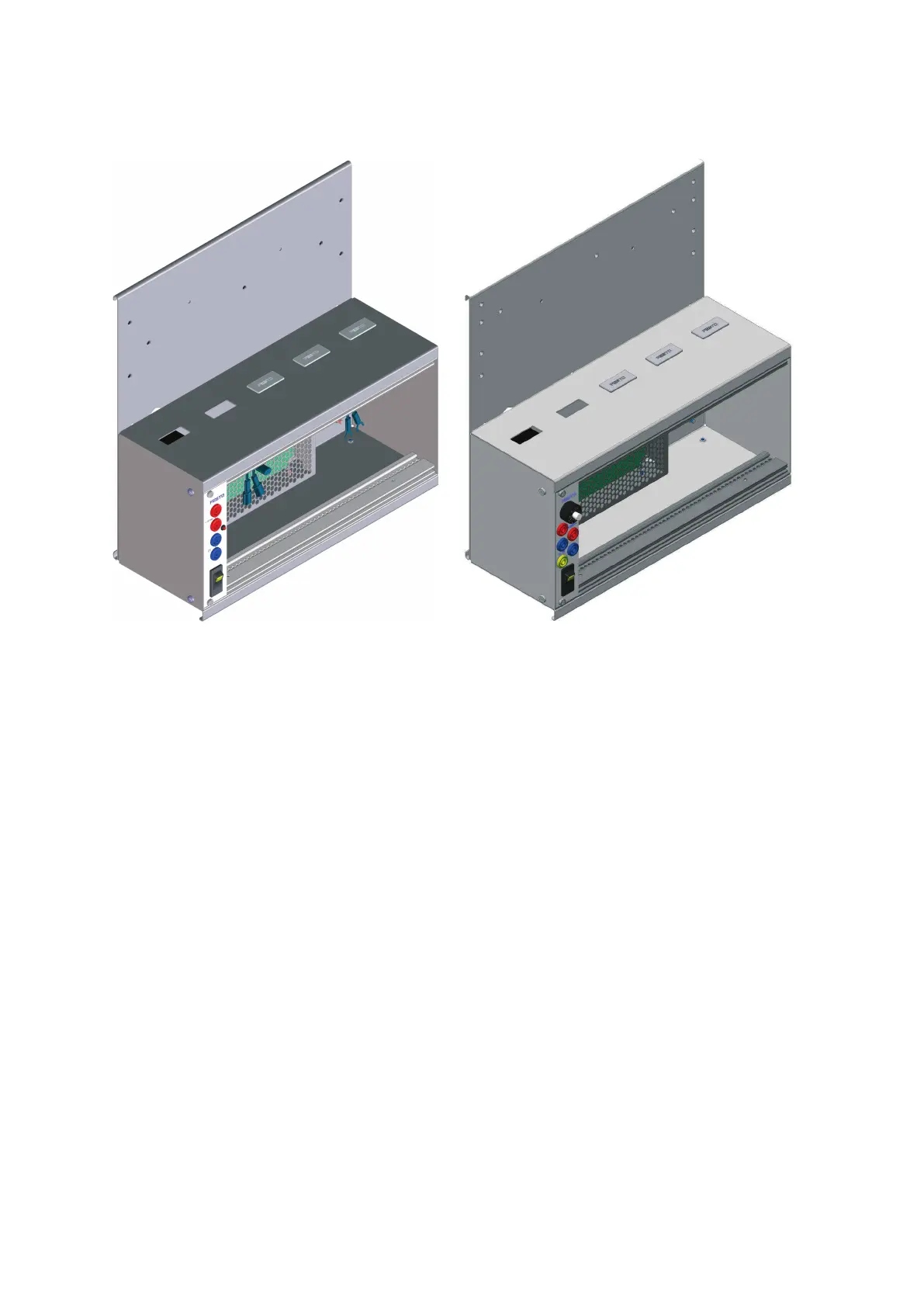

3.2 EduTrainer
®
Universal holder system with power supply
EduTrainer
®
Universal holder system with power supply EduTrainer
®
Universal holder system with power supply
(old version) (new version)
3.2.1 Structure and function
The holder system of your EduTrainer
®
PLC enables controllers from different manufacturers to be combined
with simulation plates and 4 mm connection plates. The holder system is available in two sizes and two
variants. The integrated simulation plates and 4 mm connection plates are supplied with power using the
integrated 19-inch power supply module and switched on and off centrally via a rocker switch.
Power supply (left-hand figure)
The mains switch with indicator, a control LED for 24 V and 4 mm safety sockets for 24 V and 0 V are located
on the front panel.
Limited power voltage supply (right-hand figure)
The mains switch with indicator, a control LED for 24 V, a resettable 4 A fuse, 4 mm safety sockets for 24 V
and 0 V and a safety socket for connecting the protective conductor are located on the front panel.
If the fuse is tripped, it can be reset by pressing the white button.
