Festo EduTrainer Compact - 8 19-inch Module 8 DOUT; 8.1 Structure and Function

© Festo Didactic 759614
27

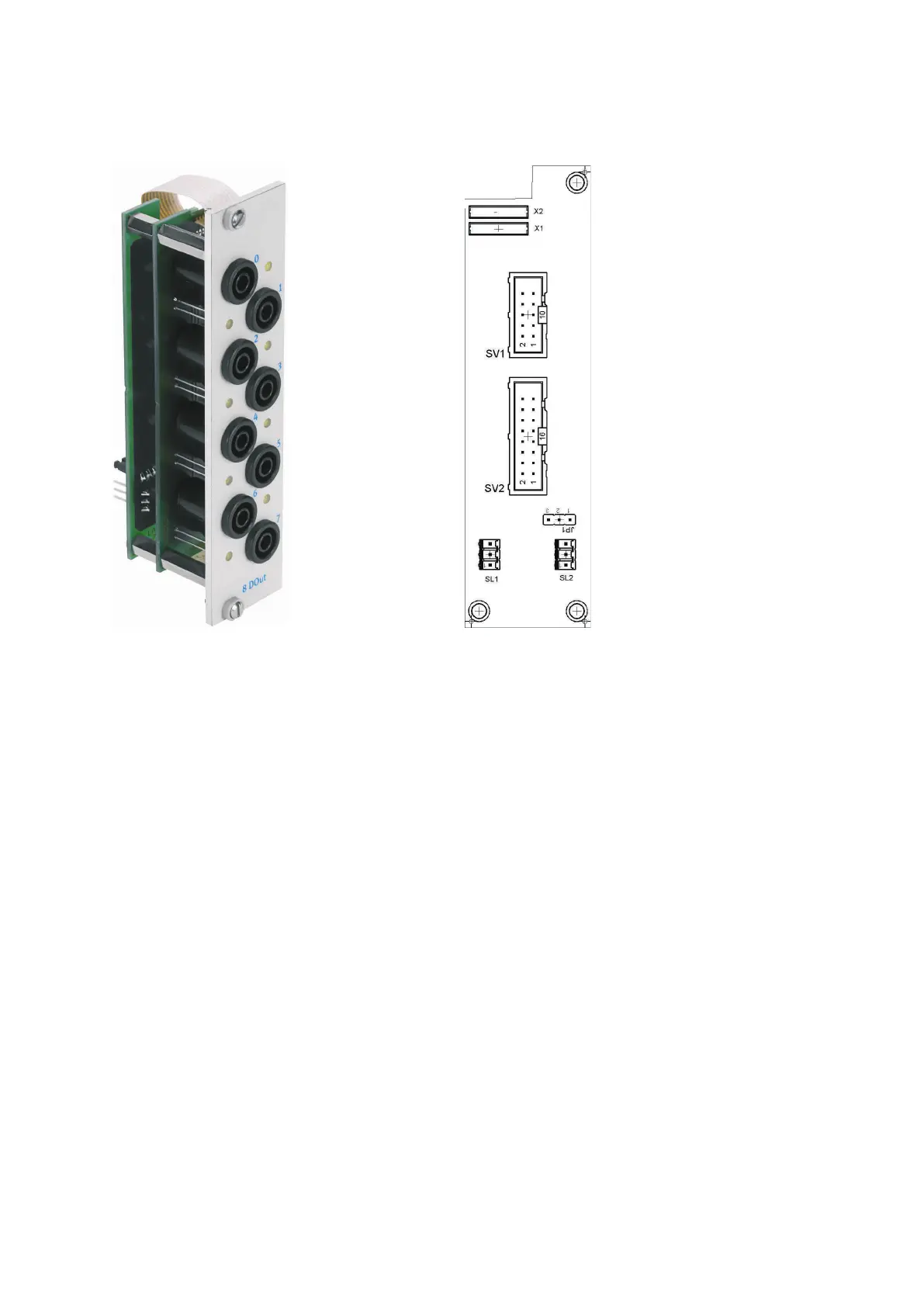

8 19-inch module 8DOUT
SV1: 10-pin outputs
SV2: 16-pin outputs
JP1: Supply via 24 V or 24 V NA
SL1, SL2: Connections for 24 V DC supply voltage
8.1 Structure and function
The 19-inch module 8DOUT extends the functional scope of your EduTrainer
®
PLC system. The module has 8
digital outputs on 4 mm safety sockets. Yellow status LEDs indicates the status of the outputs.
