16 19-inch module 24 V / 0 V
16.1 Design and function

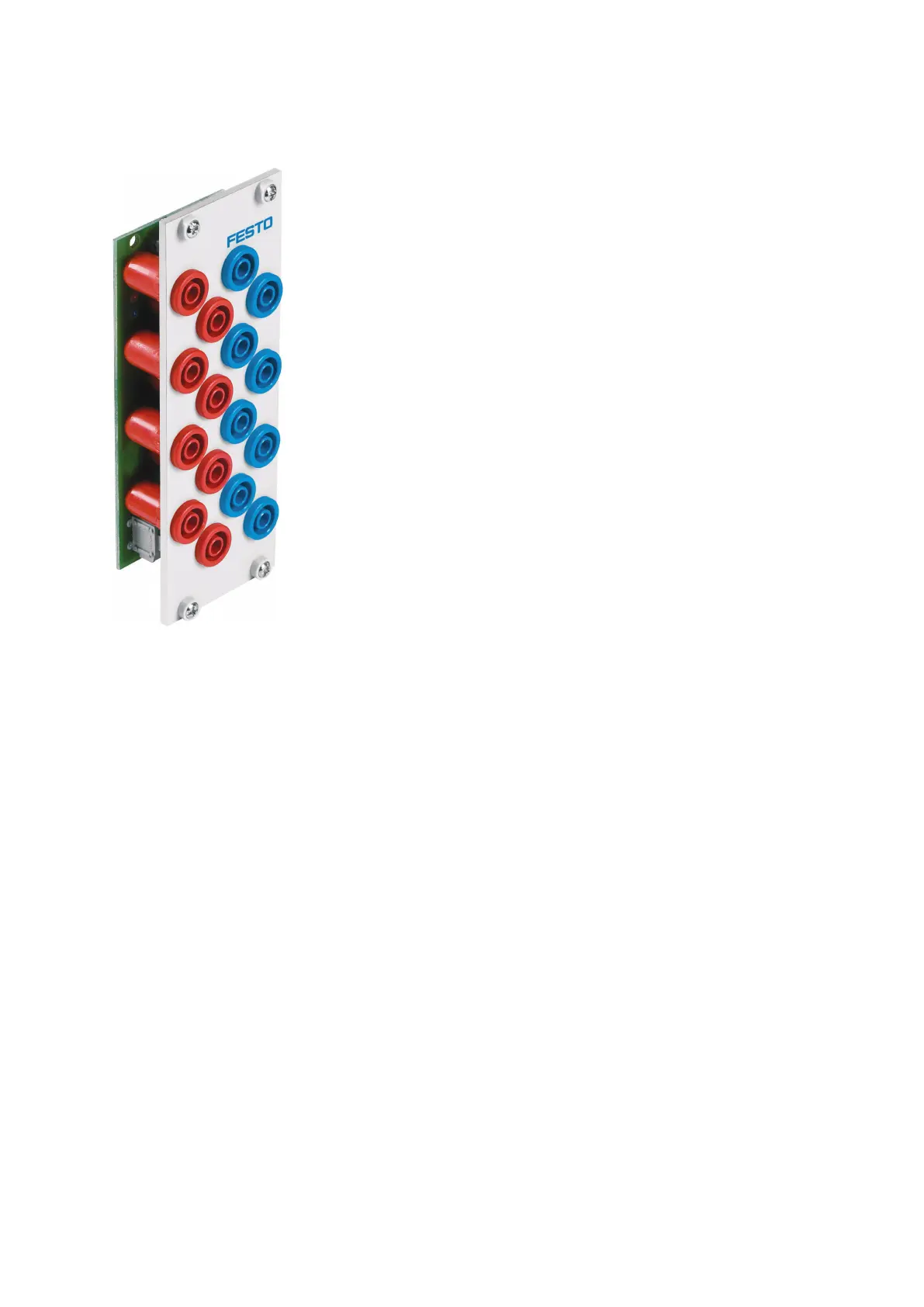

The 19-inch module 24 V / 0 V extends the scope of functions of your PLC EduTrainer
®
system. It’s equipped
with eight 24 V and eight 0 V outputs laid out as 4 mm safety sockets.
16.2 Commissioning
1. Connect 24 V supply voltage via the single-pole terminal.
2. Connect 0 V supply voltage via the single-pole terminal.
3. Screw the 19" module into the rack.
