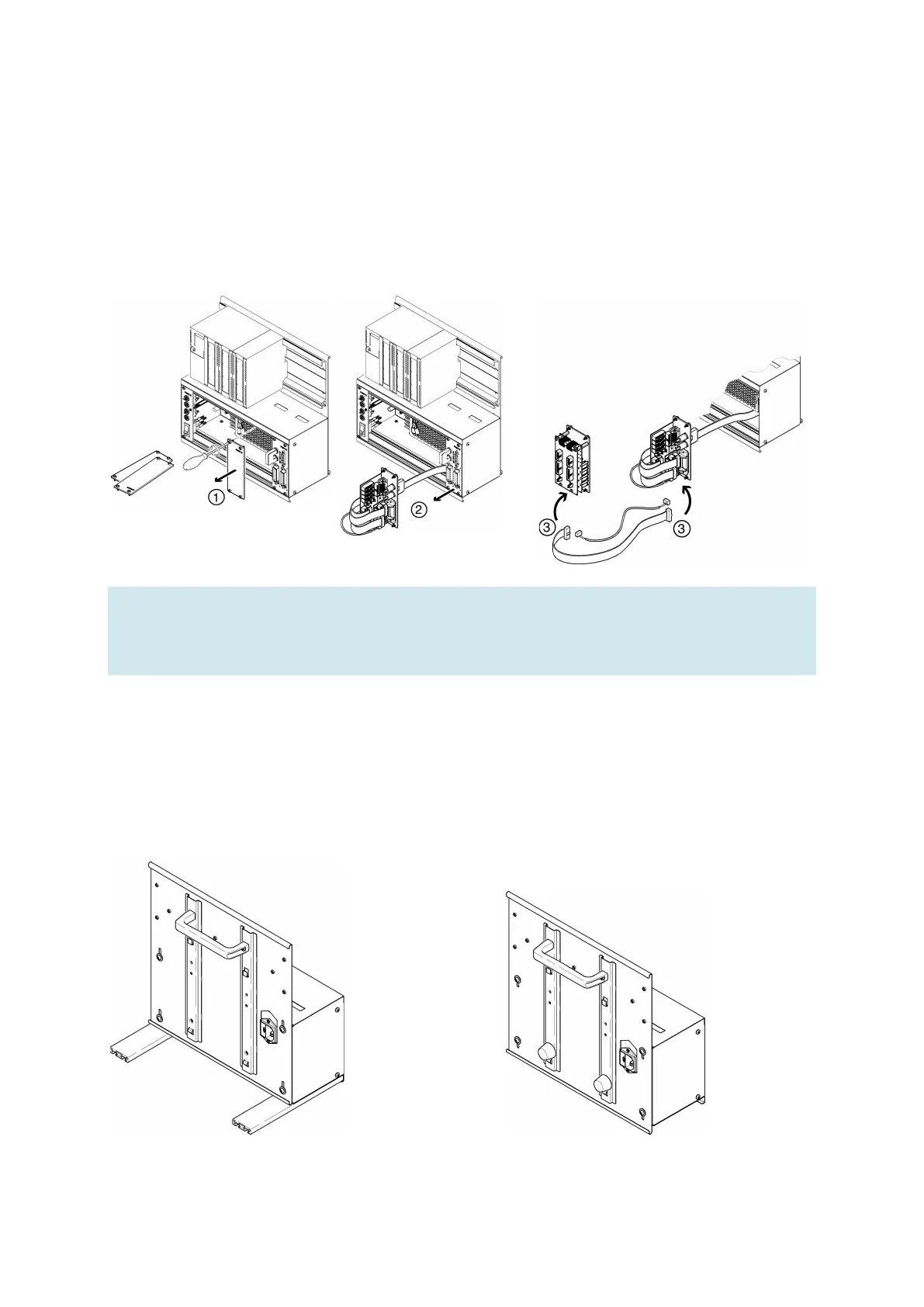

2.3 Connecting 19-inch modules in parallel
1. Remove as many blanking plates as necessary.
2. Remove the 19-inch module to which you want to connect a new 19-inch module in parallel (e.g. the
SysLink system connector module).
3. Connect the extension module with the SysLink module. The specific push-in connector can be found in
the description for the respective 19-inch modules in this manual.
Note
Unused slots must be covered with 19" blanking plates. Unused cable entries must be covered with
the covers included with the holder system.
2.4 Converting the holder system
The holder system can be easily converted from a rack variant to an A4 variant and vice versa.
Rack variant: A4 variant:
