Festo EduTrainer Compact - 14 19-inch Module for SysLink System Connector; 14.1 Structure and Function

© Fe
sto Didactic 759614
43

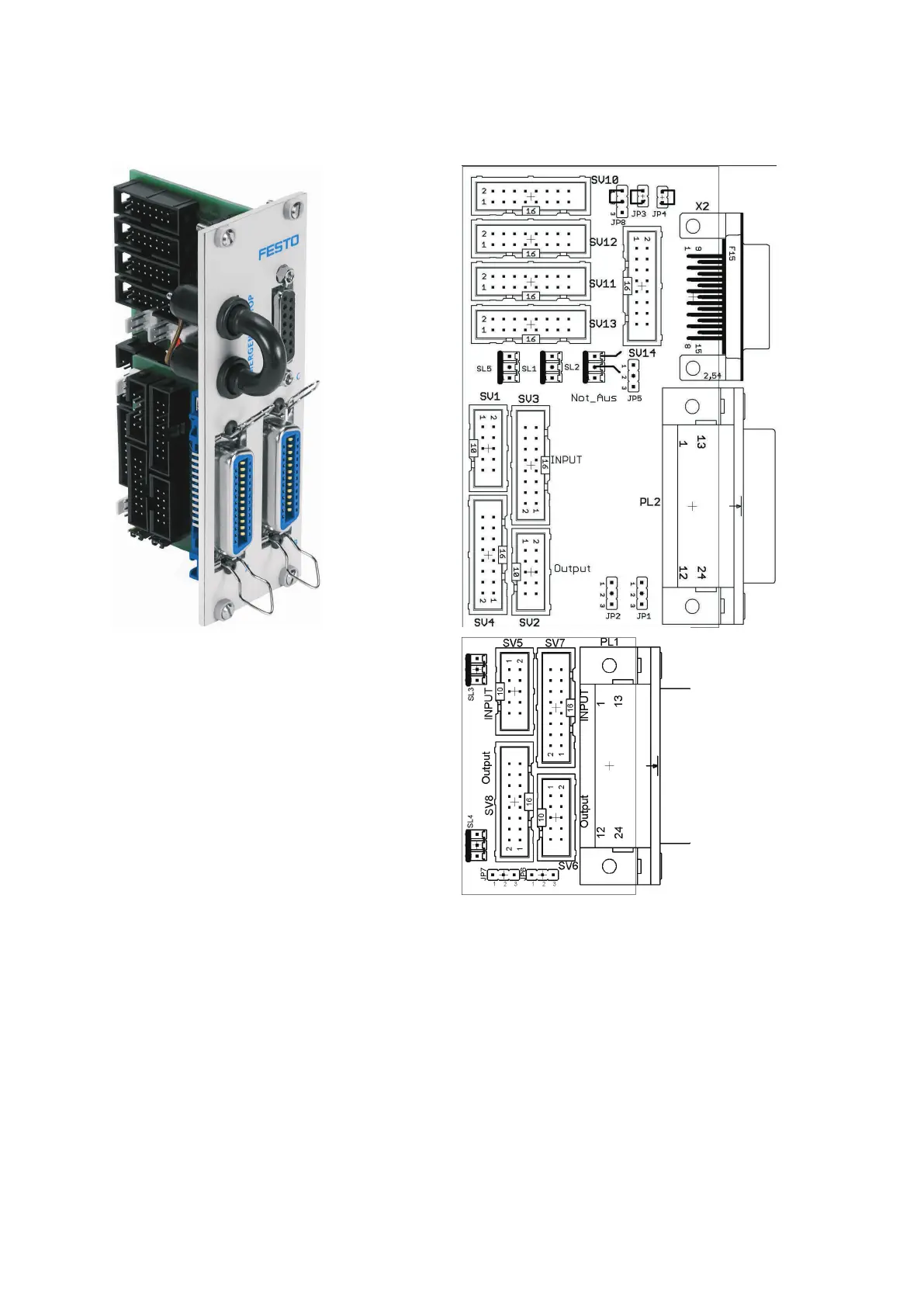

14 19-inch module for SysLink system connector
SV1, SV2, SV5, SV6: 10-pin inputs/outputs
SV3, SV4, SV7, SV8: 16-pin inputs/outputs
SV10: Analogue I/Os (S7 40-pin top)
SV11: Analogue I/Os (S7 40-pin bottom)
SV12: Analogue I/Os (S7 20-pin top)
SV13: Analogue I/Os (S7 20-pin bottom)
SV14: Analogue I/Os
JP2: Digital outputs byte 1 via 24 V or 24 V NA
JP8: Connection from EMERGENCY STOP to bit 1.5
JP5: Analogue outputs via 24 V or 24 V NA
JP7: Digital outputs byte 0 via 24 V or 24 V NA
SL1, SL2: Connections for 24 V DC supply voltage
X2: Analogue inputs/outputs
PL1, PL2: Digital inputs/outputs
