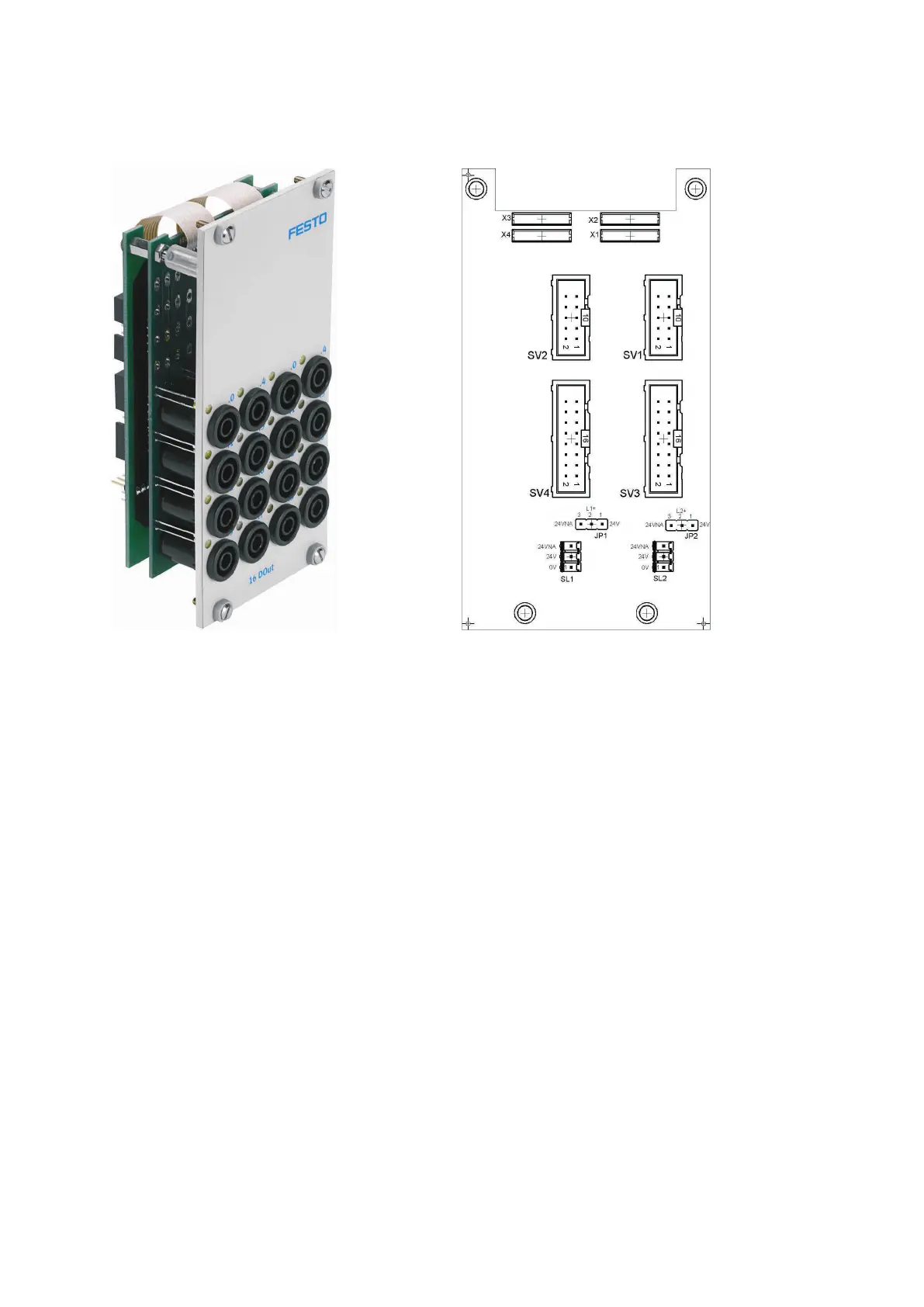

5 19-inch module 16DOUT
SV1, SV2: 10-pin outputs
SV3, SV4: 16-pin outputs
JP1, JP2: Supply for output modules via 24 V or 24 V NA
SL1, SL2: Connections for 24 V DC supply voltage
5.1 Structure and function
The 19-inch module 16DOUT extends the functional scope of your EduTrainer
®
PLC system. The module has
16 digital outputs on 4 mm safety sockets. Yellow status LEDs indicates the status of the outputs.
