Festo EduTrainer Compact - 15 19-inch AS-interface Module; 15.1 Design and Function

© Festo Didactic 759614
47

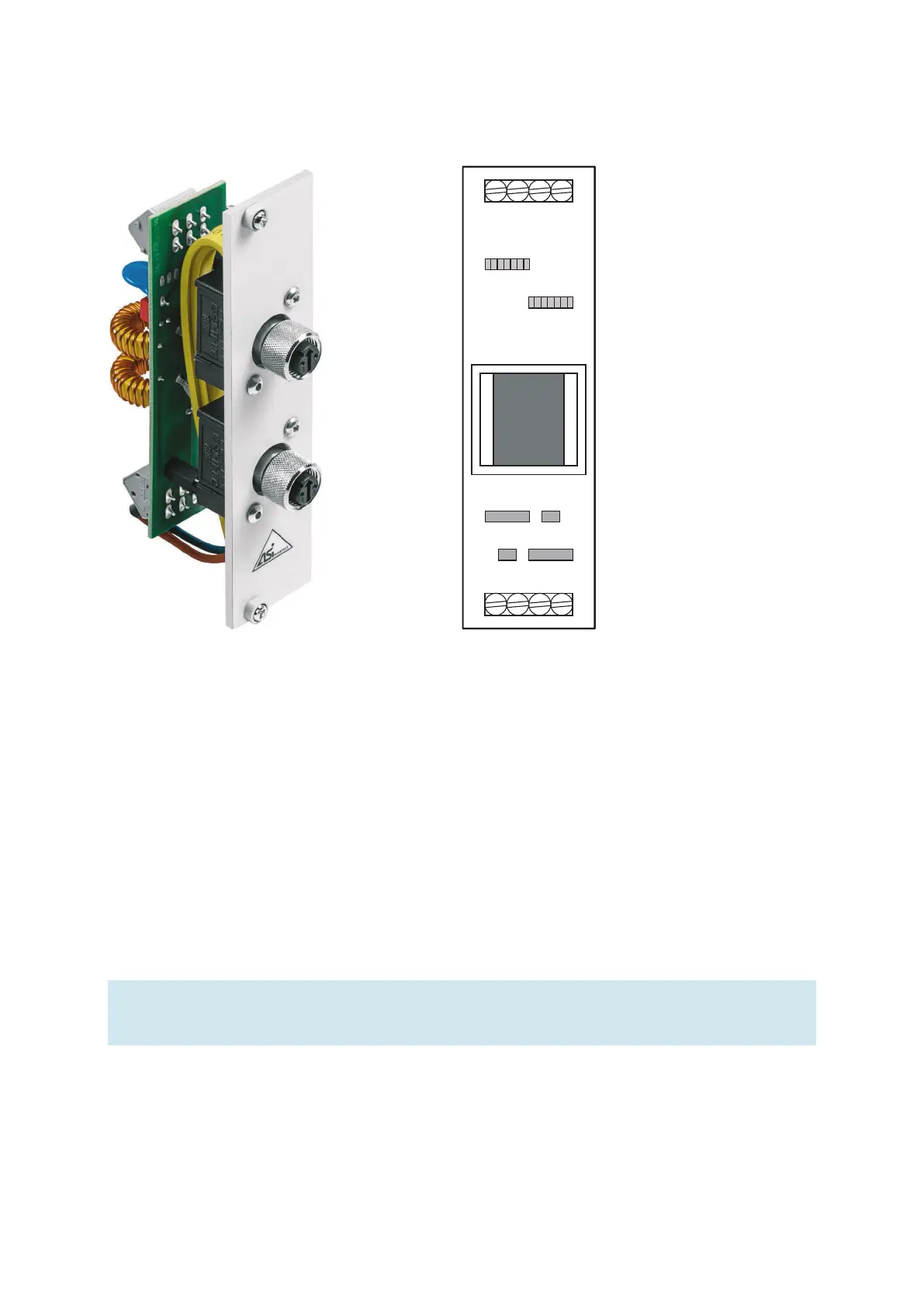

15 19-inch AS-interface module
+ +
AS-Interface
0V24V
SL
– –
Screw terminals for 24 V DC supply power (0 V, 24 V)
and protective earth conductor
Screw terminals for two ASI strings: ASI-, ASI+
15.1 Design and function
The 19-inch AS-interface module expands the scope of functions of your PLC EduTrainer
®
system. Thanks to
its integrated AS-interface filter, and in combination with a corresponding AS-interface controller module, it
allows for direct connection of AS-interface components via the two M12 AS-interface sockets.
The module supplies power to the AS-interface controller module and makes the AS-interface connection
available externally via two M12 AS-interface sockets.
Note
Use of the 19-inch AS-interface module is only permissible for training purposes.
