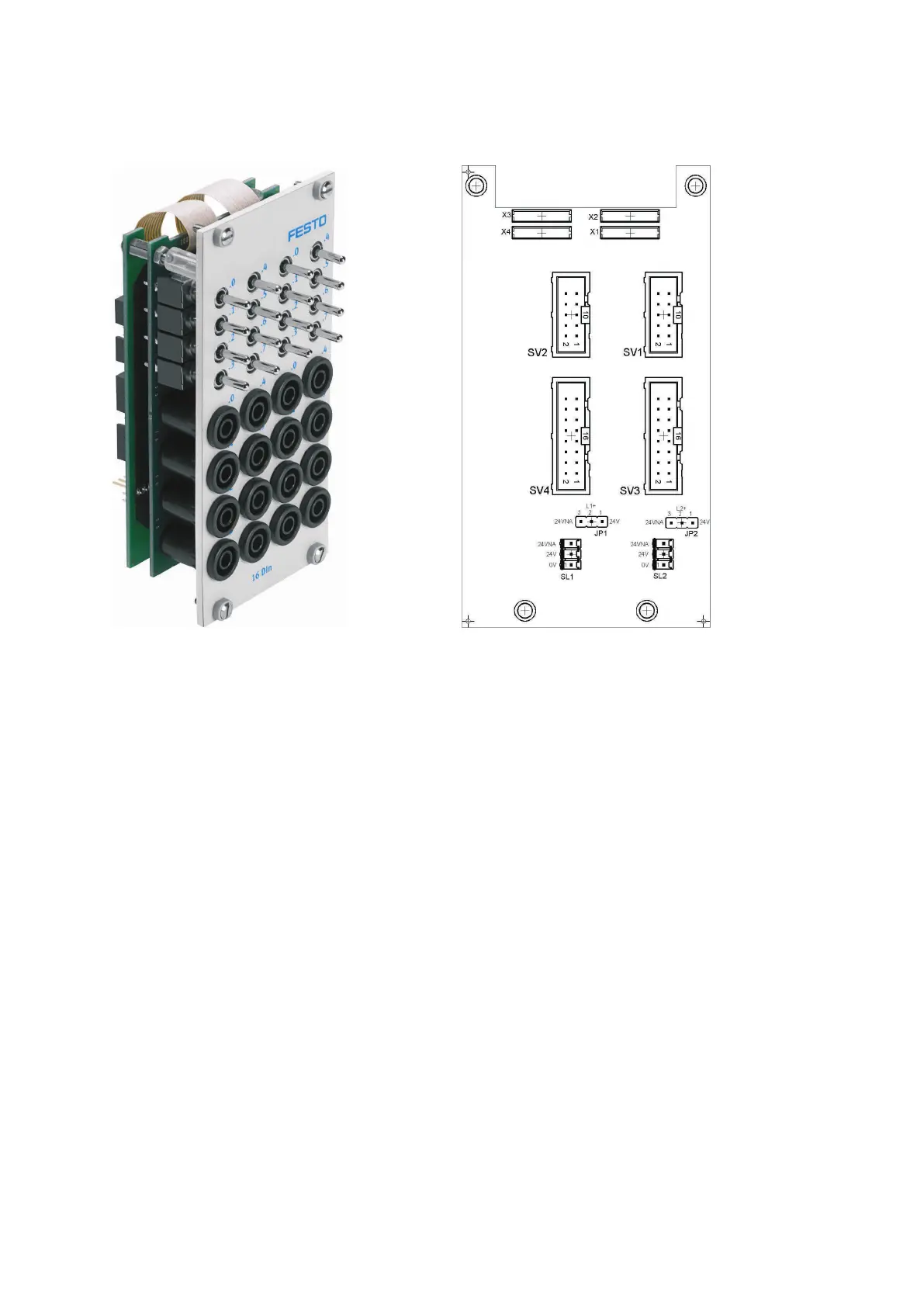

4 19-inch module 16DIN
SV1, SV2: 10-pin inputs
SV3, SV4: 16-pin inputs
JP1, JP2: Supply via 24 V or 24 V NA
SL1, SL2: Connections for 24 V DC supply voltage
4.1 Structure and function
The 19-inch module for 16DIN extends the functional scope of your EduTrainer
®
PLC system. It has 16 digital
inputs on 4 mm safety sockets and 16 switches/pushbuttons for signal simulation.
The input signals from a PLC are applied to the controller either via the 4 mm safety sockets or in parallel via
the pushbuttons. Each pushbutton has a detenting and non-detenting function. This enables them to
generate static or pulsed signals.
