Festo EduTrainer Compact - 7 19-inch Module 8 DIN, Without Switch; 7.1 Layout and Function

© Festo Didactic 759614
25

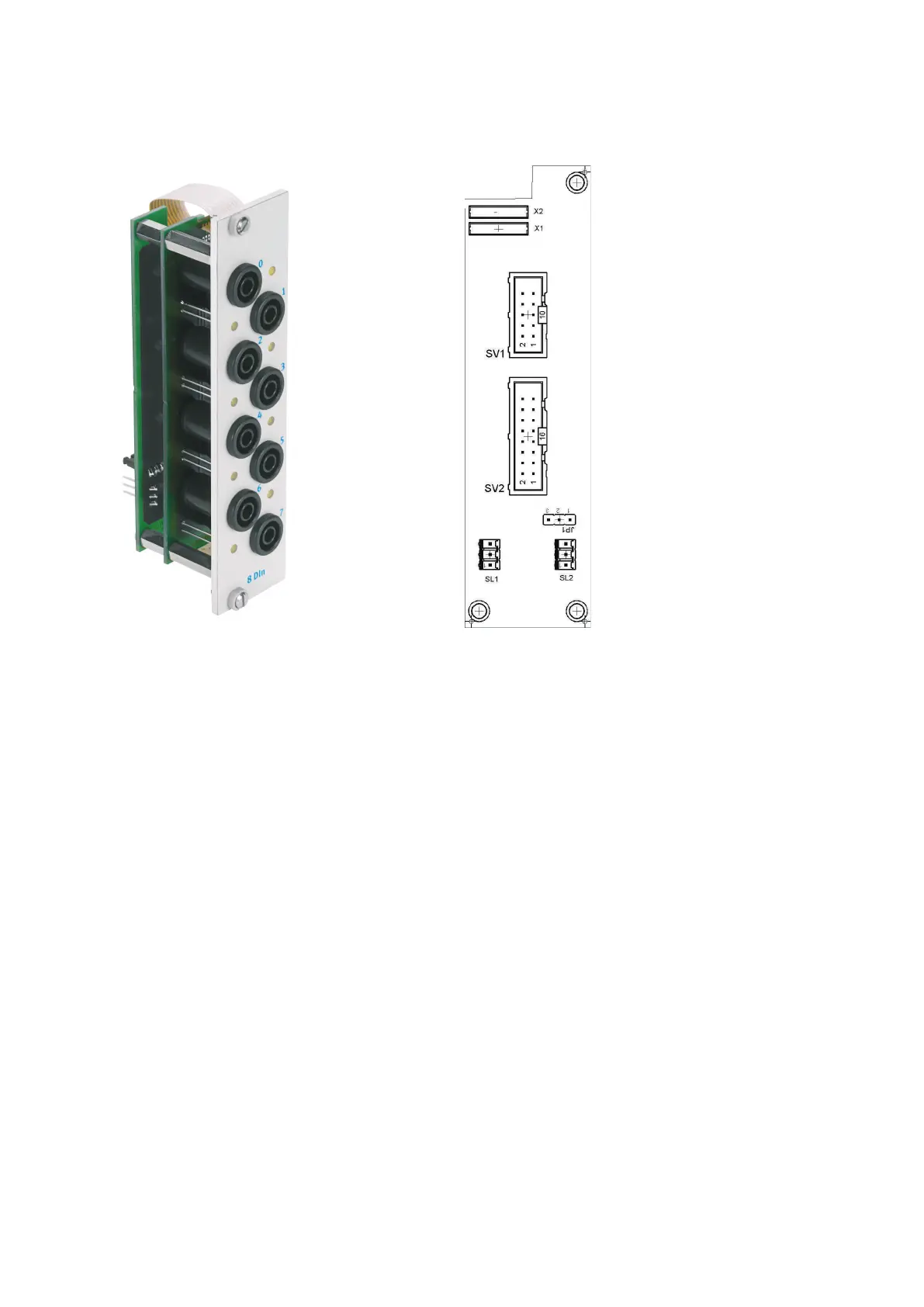

7 19-inch module 8DIN, without switch
SV1: 10-pin inputs
SV2: 16-pin inputs
JP1: power supply via 24 V or 24 V NA
SL1, SL2: 24 V DC supply voltage terminals
7.1 Layout and function
The 19-inch module 8DIN extends the scope of functions of your EduTrainer
®
PLC system. It’s equipped with
8 digital inputs laid out as 4 mm safety sockets. Yellow status LEDs indicate the status of the inputs.
The input signals from a PLC are applied to the controller via the 4 mm safety sockets.
