18 19-inch module 0 V
18.1 Layout and function

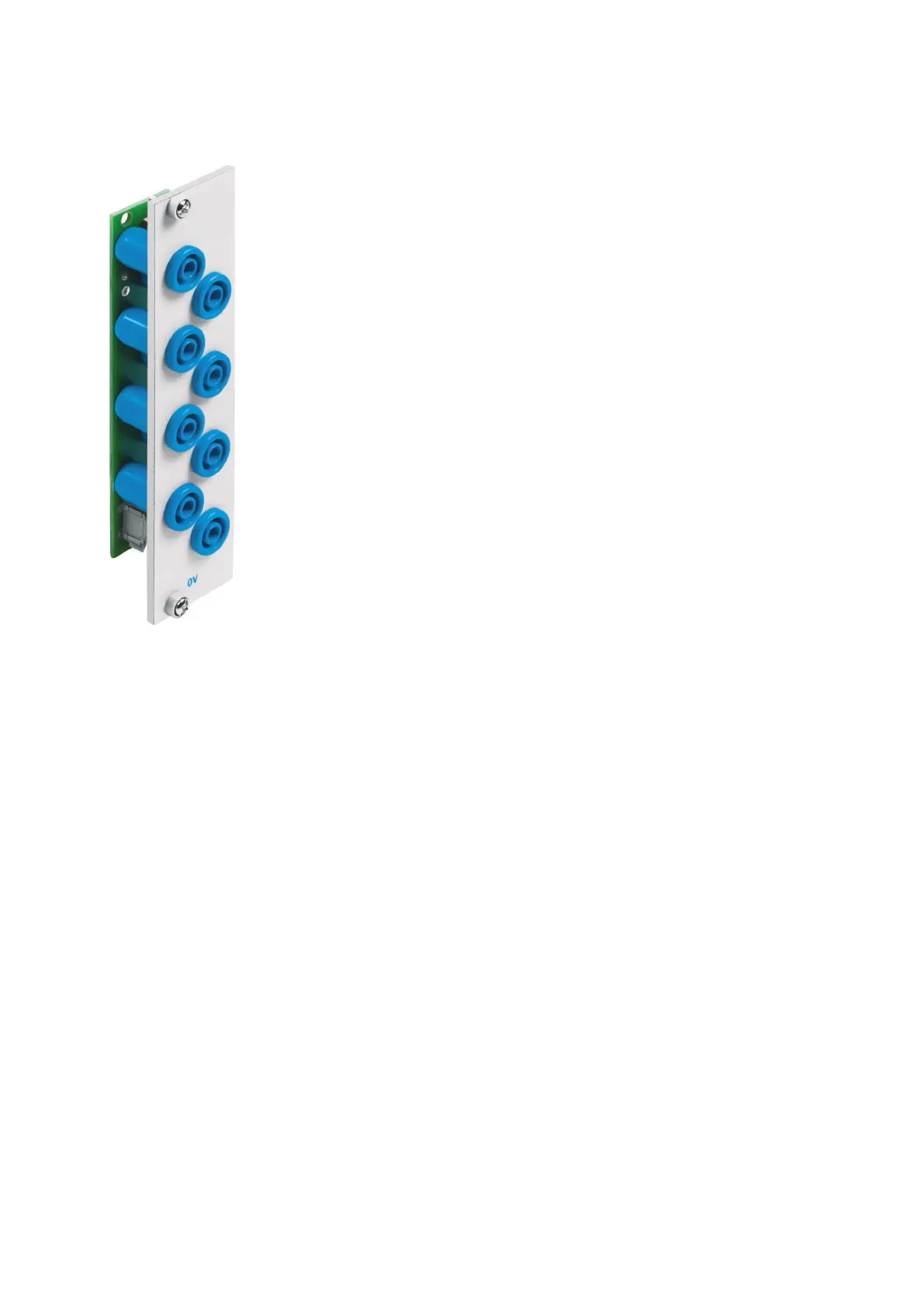

The 19-inch module 0 V extends the scope of functions of your PLC EduTrainer
®
system. It’s equipped with
eight 0 V outputs laid out as 4 mm safety sockets.
18.2 Commissioning
1. Connect 0 V supply voltage via the single-pole terminal.
2. Screw the 19-inch module into the rack.
