9 19-inch module 4DOUTR
9.1 Design and function

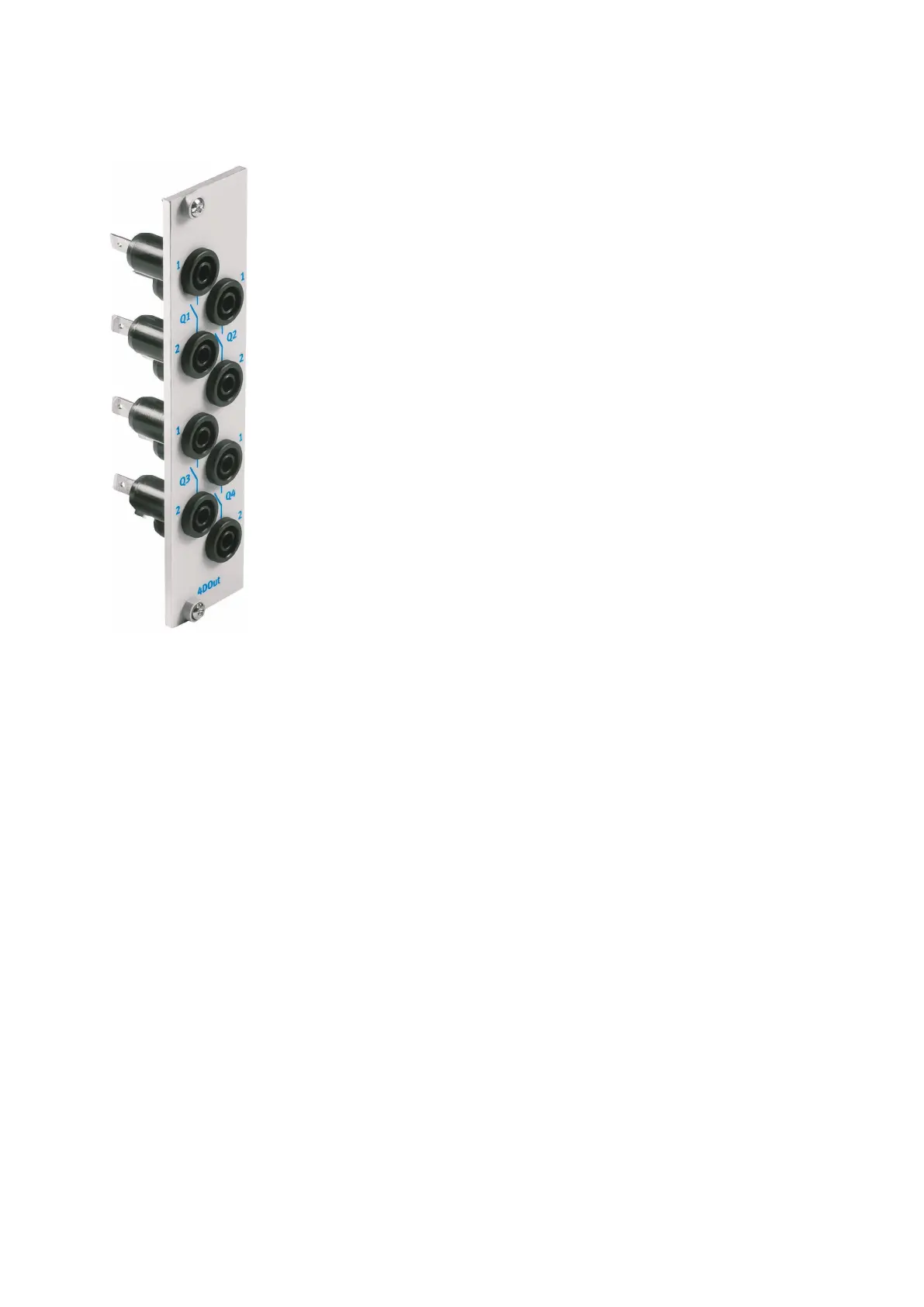

The 19-inch module 4DOUTR extends the functional scope of your EduTrainer
®
PLC system. The module
connects 4 relay outputs on 4 mm safety sockets.
9.2 Commissioning
1. Connect the outputs by means of 8 single wires to the PLC/LOGO!
2. Screw the 19-inch module into the frame.
