Example of address assignment (seen from above):
2
15 14
17
12 34
7
4
98
35
6
15
2
1
0
1
3
4
5
6
789
10
11 12 13
16
1
aJ
1 Addresses of the solenoid coils 14
(manual override 14)
2 Addresses of the solenoid coils 12
(manual override 12)
3 LED for solenoid coil 12
4 LED for solenoid coil 14
5 Unused valve position
6 Sub-base with electronic module
VMPA2-MPM-EMM-4 occupies two
addresses per valve location
7 Supply plate for additional pressure
supply
8 Sub-base with electronic module
VMPA1-MPM-EMM--4 occupies one
address per valve location
9 Sub-base with electronic module
VMPA2-MPM-EMM--2 occupies one
address per valve location
aJ Sub-base with electronic module
VMPA1-MPM-EMM-8 occupies two
addresses per valve location

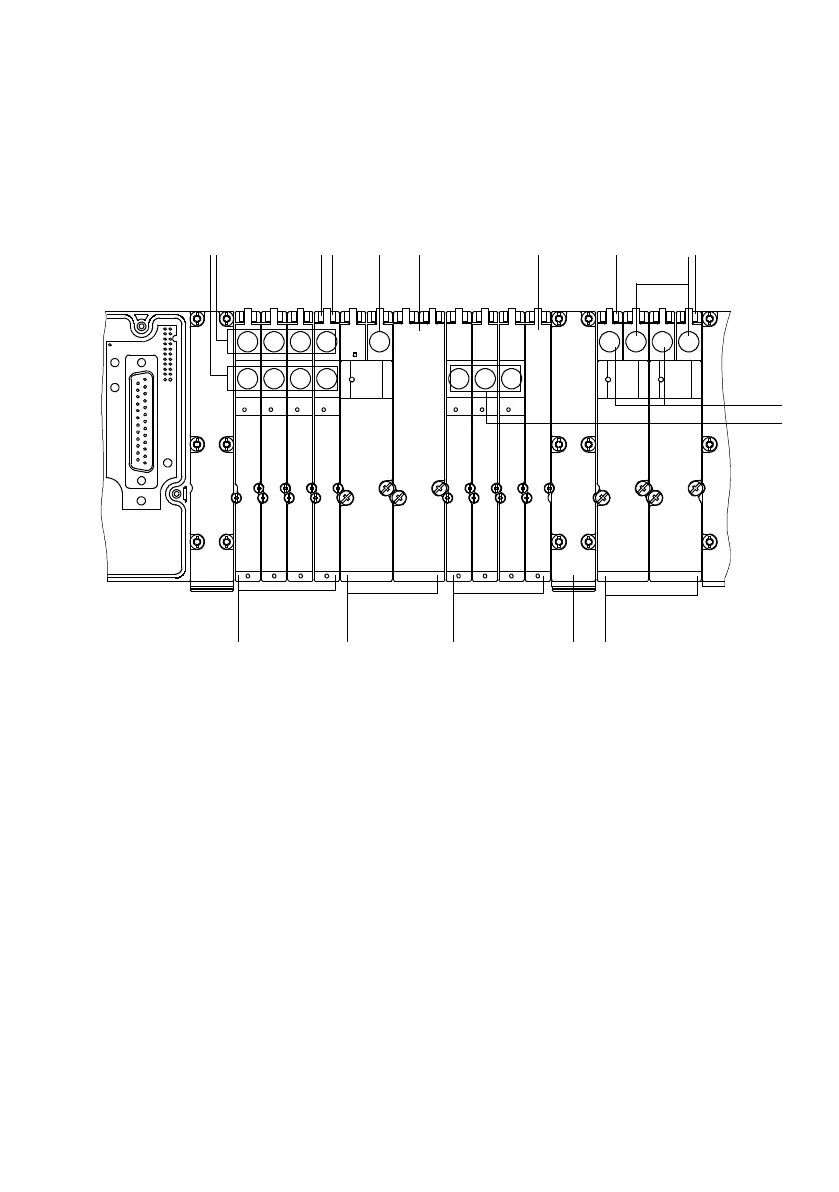

Fig. 3/6: Example: Address assignment of the MPA-S valve terminal with multi-pin plug
connection and 12 valve locations, type MP A...-MPM- ... (top view)
