5. Maintenance and conversion
5-7
Festo P.BE-MPA-EN en 1108e
Dismantling Proceed as follows:
• Use a screwdriver with a narrow blade to loosen the
fastening screws and remove the components from the
sub-bases (see diagram).

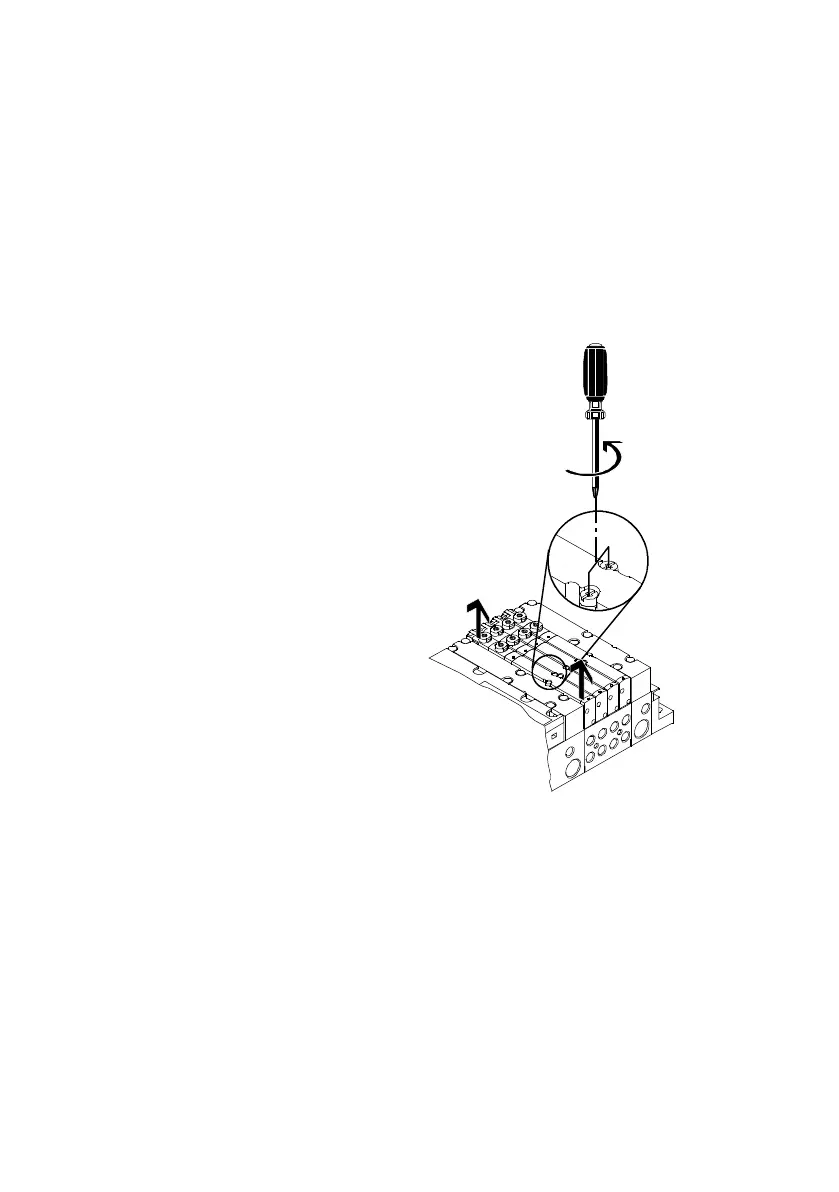

Fig. 5/1: Dismantling valves or blanking plates
Mounting Proceed as follows:
1. Make sure the seal is not damaged.
2. Replace seals if they are damaged.
3. Make sure that the cord seal between the sub-base and
components is in the correct position: The cord seal must
sit in the component cut-outs.
