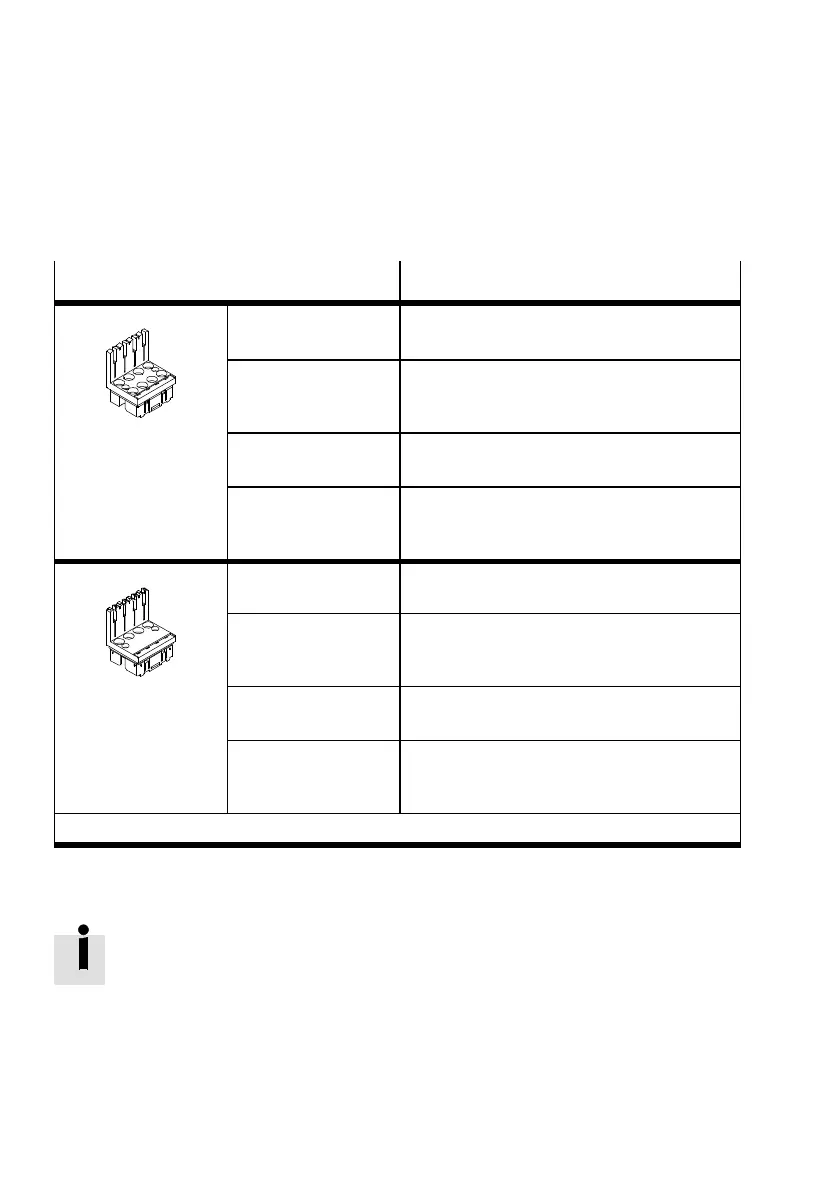

The followi ng electronics modules are avail a ble:
Type
Description of the electronics module
VMPA1-FB...
VMPA1-FB-EMG-8 – 4 valve positions / 8 outputs
–withseparate circuits
VMPA1-FB-EMG-D2-8 – 4 valve positions / 8 outputs
–withseparate circuits
– with diagnostic functions D2
VMPA1-FB-EMS-8 – 4 valve positions / 8 outputs
–withcommon circuit
VMPA1-FB-EMS-D2-8 – 4 valve positions / 8 outputs
–withcommon circuit
– with diagnostic functions D2
VMPA2-FB...
VMPA2-FB-EMG-4 – 2 valve positions / 4 outputs
–withseparate circuits
VMPA2-FB-EMG-D2-4 – 2 valve positions / 4 outputs
–withseparate circuits
– with diagnostic functions D2
VMPA2-FB-EMS-4 – 2 valve positions / 4 outputs
–withcommon circuit
VMPA2-FB-EMS-D2-4 – 2 v alve positions / 4 outputs
–withcommon circuit
– with diagnostic functions D2
Outputs correspond to solenoid c oils
Tab. 5/3: Electronics modules for MPA-S valve terminal with CPX terminal
Additional information on MP A electronics modules can be
found in the package insert and in the corresponding MPA-...
electronics description.
