4. Screw the multiple connector plate to the pneumatic
sub-bases. Tighten the screws in the sequence 1, 2, 3
as shown in the diagram at first slightly and then with
1.8Nm(±10%).
2
1
3

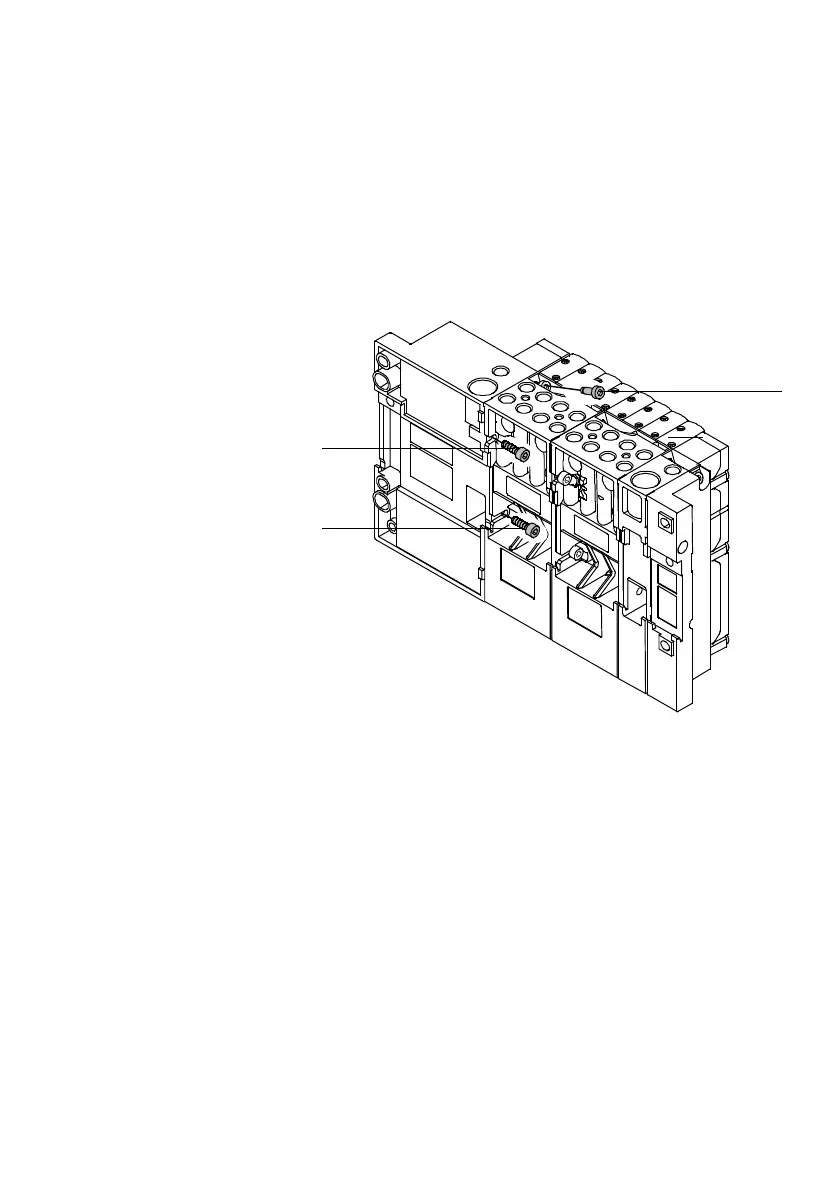

Fig. 5/15: Sub-base fittings
5. Mount the MP A-S valve terminal onto the mounting
surface (see Chapter 2 Fitting, “Mounting onto a wall” or
“Mounting onto an H-rail”).
6. Then install the pneumatic and electrical connections
(see Chapter 3 “Installation, connecting the MPA-S valve
terminal”).
