5. Maintenance and conversion
5-36
Festo P .BE-MPA-EN en 1108e
Components MPA-S valve termin al with ...
CPX terminal Multi-pin plug
connection
For e very added sub-base or pneumatic supply
plate, the appropriate seal or separating seal
See Chapter 1, Tab. 1/8
1)
Sub-bases without pressure zone separation
2)
Sub-bases with pressure zone separation in channel (1). See also Chapter 1, Tab. 1/7
Tab. 5/10: Valve position extension
Dismantling Proceed as follows:
1. Loosen the MPA-S valve terminal from the mounting
surface (see section “Dismantling the MPA-S valve
terminal”).
2. Dismantle the sub-base or supply plate at the point where
you wish to extend the terminal (see section 5.3.6).
3. Only MP A-S valve terminal with multi-pin plug connection:
If you wish to mount a further sub-base on the last
sub-base before the right-hand MPA end plate, you must
removetheendpiecetypeMPAfromthelastinterlinking
board.
1 End piece
Type MPA
1

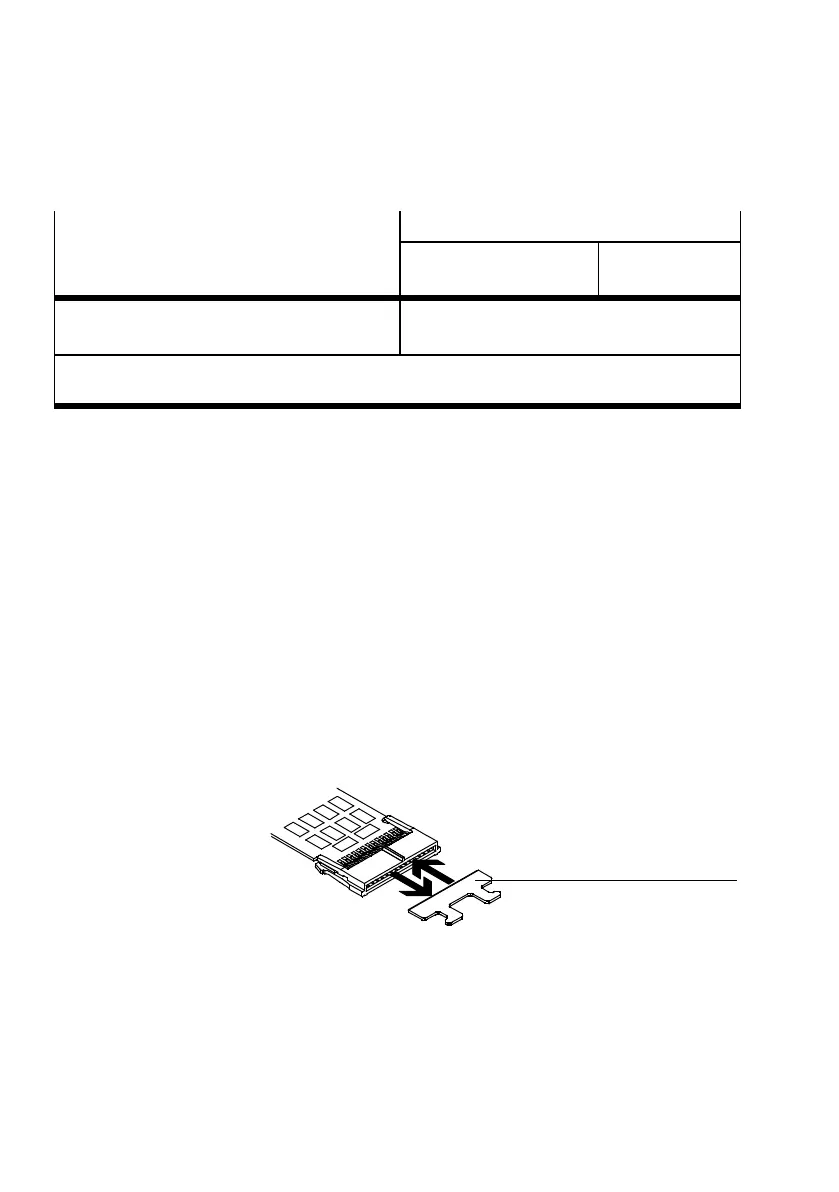

Fig. 5/17: Removing/mounting the end piece of the last interlinking board
