Reversible B pressure regulating valve MPA2
1 Output pressure
2 Flow rate
1
2

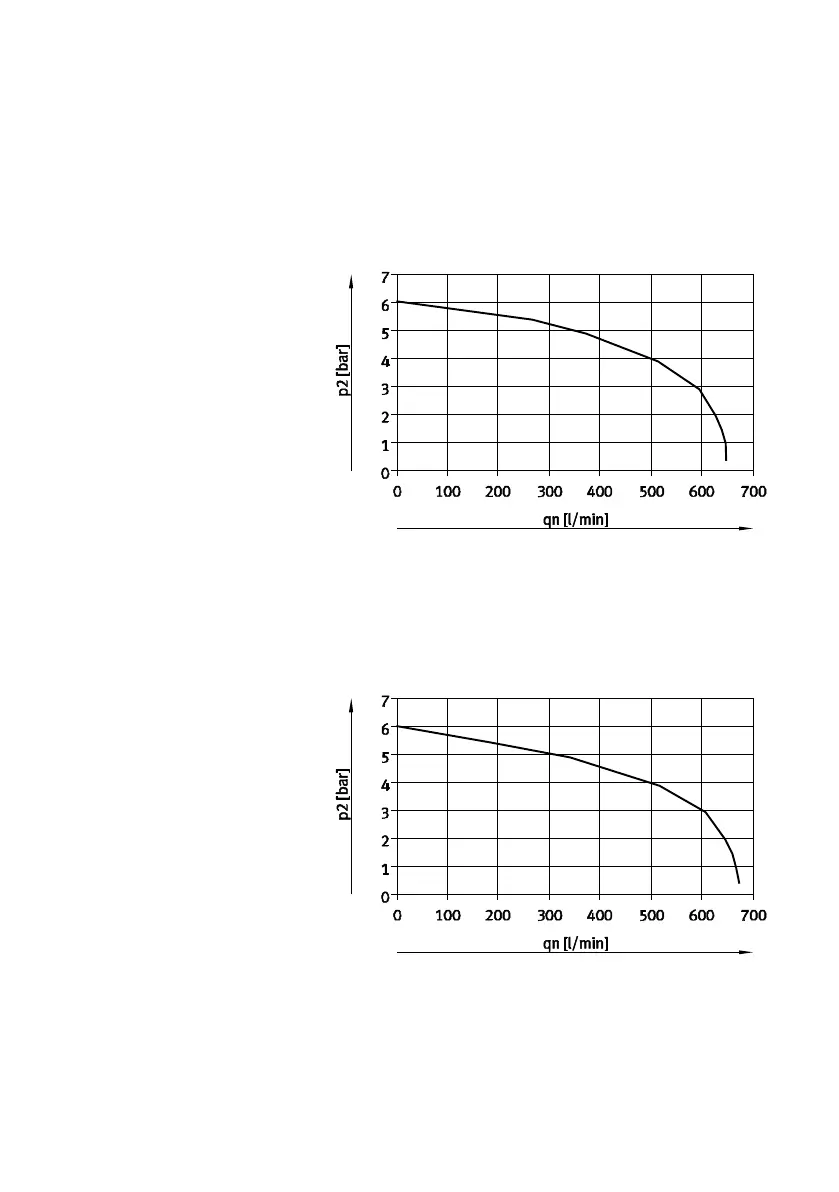

Fig. A/10: Diagram for size MPA2 of the reversible B pressure regulator
(ident. code: PN and PL): Flow rate dependent on output pressure
Reversible A pressure regulating valve MPA2
1 Output pressure
2 Flow rate
1
2
Fig. A/11: Diagram for size MPA2 of the reversible A pressure regulator
(ident. code: PM and PK): Flow rate dependent on output pressure
