B. Supplementary component summary
B-5
Festo P.BE-MPA-EN en 1108e
Note
– In a currentless state 5/3-way valves assume the
mid-position by means of spring force.
– If both solenoid coils on 5/3-way valves are energised
simultaneously, the valve remains in the previous
switching position.

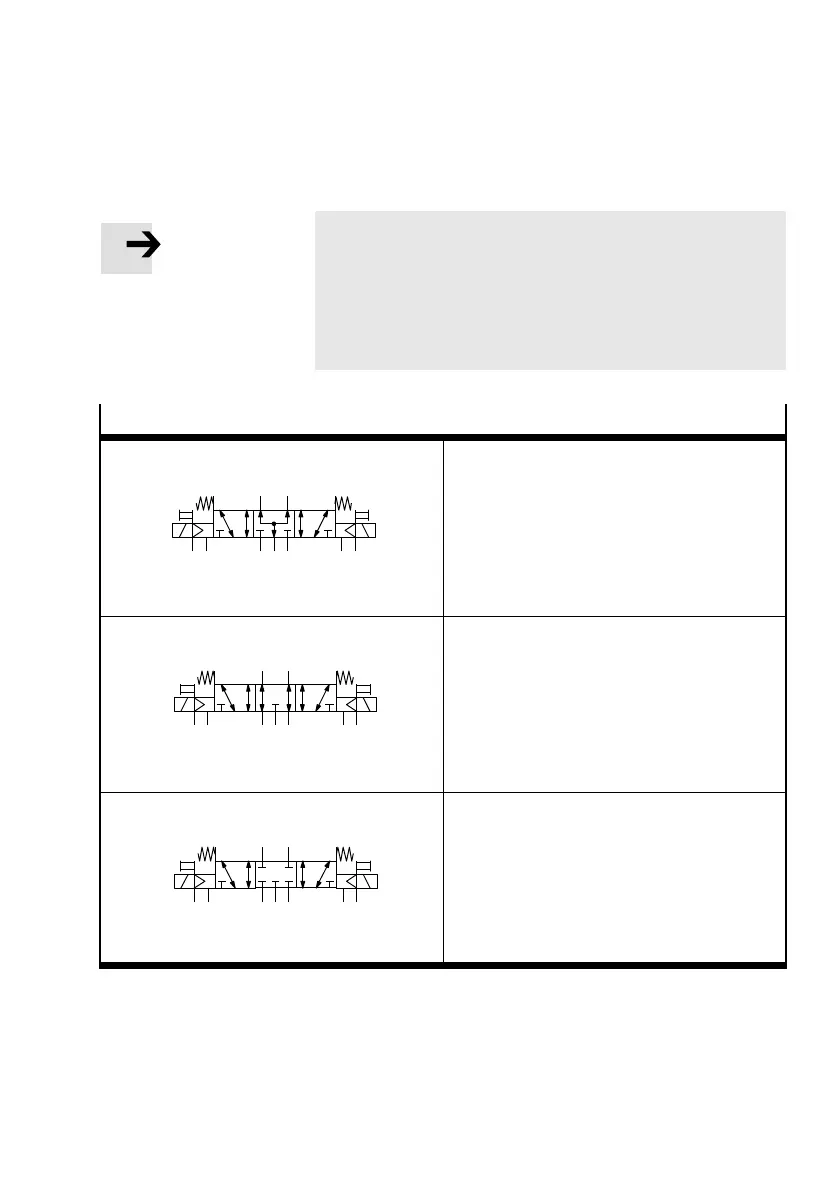

5/3-way valves
(82/84)
(12/14)
53
1
42
1214
14 84 82 12
Ident. c ode: B
Function:
– 5/3-way valve
– open in mid-position
(82/84)
(12/14)
53
1
4
2
1214
14 84 82 12
Ident. c ode: E
Function:
– 5/3-way valve
– mid-position exhausted
(82/84)
(12/14)
53
1
4
2
1214
14 84 82 12
Ident. c ode: G
Function:
– 5/3-way valve
– closed in mid-position
Tab. B/2: 5/3-way valves
