B. Supplementary component summary
B-7
Festo P.BE-MPA-EN en 1108e

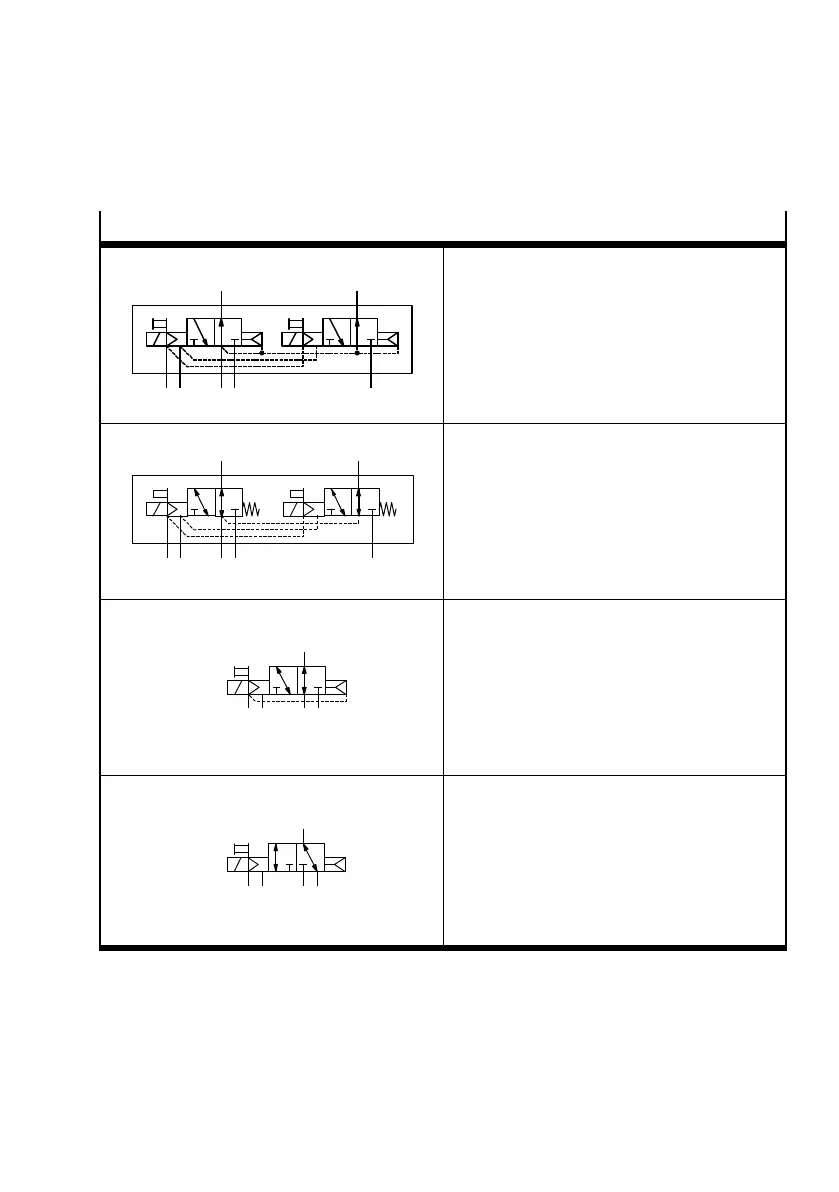

3/2-way valves
82/84
12/14
35
4
(14)
2
1
(12)
10 10
Ident. c ode: N
Function:
– Two monostable 3/2-way valves
– Normally open
– Pneumatic spring return
12/14 82/84
1
5
10
4
10
2
3
Ident. c ode: NS
Function:
– Two monostable 3/2-way valves
– Normally open
– Mechanical spring return
(82/84)
(12/14)
32
4
(14)
14 84
20
Ident. c ode: W
Function:
– One 3/2-way valve, monostable, normal
position open, external compre ssed air supply
– Pneumatic spring return
(82/84)
(12/14)
3
2
4
(14)
14 84
42
Ident. c ode: X
Function:
– One 3/2-way valve, monostable, normal
position closed, external compressed air
supply
– Pneumatic spring return
Tab. B/3: 3/2-way valves
