B. Supplementary component summary
B-9
Festo P.BE-MPA-EN en 1108e

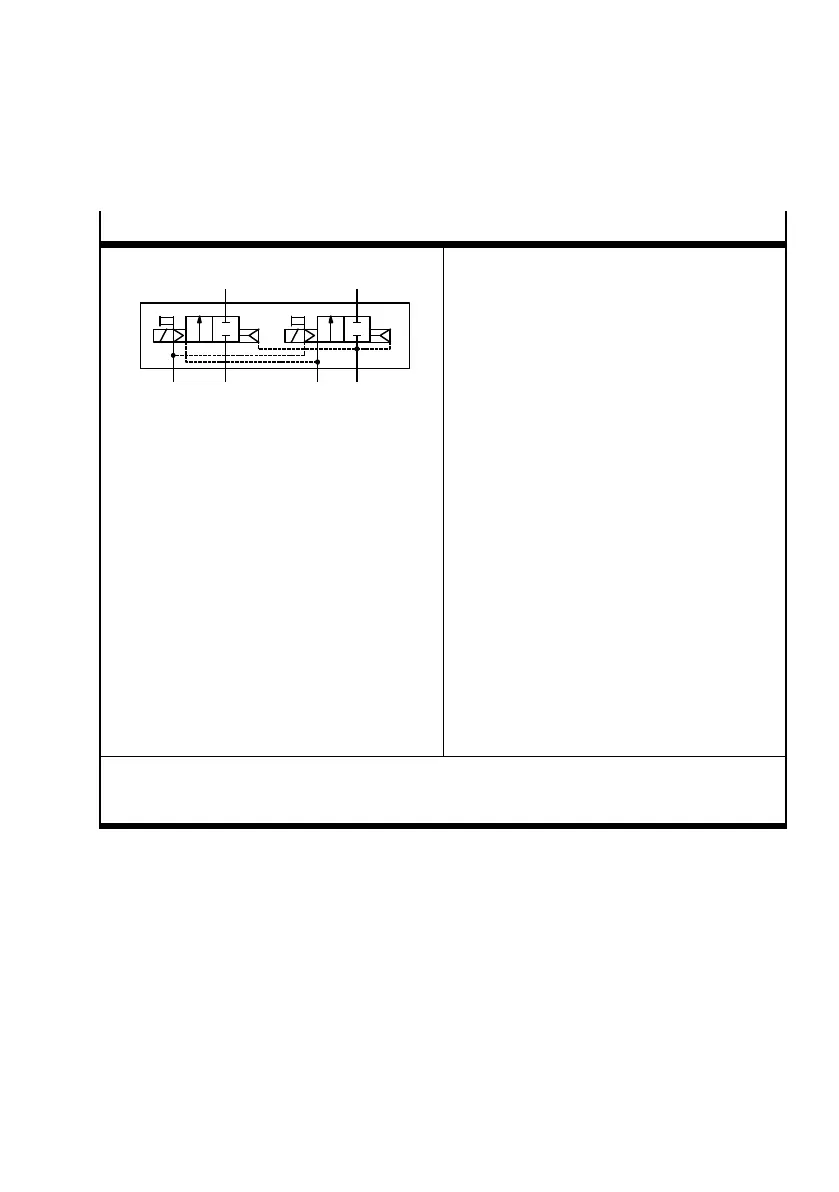

2/2-way valves
82/84
12/14
42
1
14 12
5
Ident. code: I, Function:
1)
– Two single-solenoid 2/2-wa y valves.
Both valves closed in normal position, valve on
control side 14 reversible
– Pneumatic spring return
– With dual-pressure operation:
– Supply operating pressure via port 1
– At port (3/5) separate o p erating pressure
can be supplied.
– With valve coil 14 operating pressure
is switched from port (5) to port (4)
– With valve coil 12 operating pressure
is switched from port (1) to port (2)
– With vacuum operation:
– Feed operating pressure via port ( 1)
– Feed vacuum via por t (5)
– With solenoid c oil 14, vac uum is switched
to port (4)
– At port (4) or in line 4, a filter is intended
so that no dirt can enter the valve.
– With solenoid coil 12, operating pressure
is switched to port (2) (e.g. for reject
pulse with vacuum operation)
– For reject pulse between port (2), (4) and
vacuum suction cup, create connection
via T-piece
1)
Note: If this 2/2-way v alve (ident. code I) is also operated with other valves
On the MPA-S valve terminal, this 2/2-way valve must be operated in a separate
pressure zone with separate exhaust channel (5).
Tab. B/4: 2/2-way valves
