B. Supplementary component summary
B-10
Festo P .BE-MPA-EN en 1108e

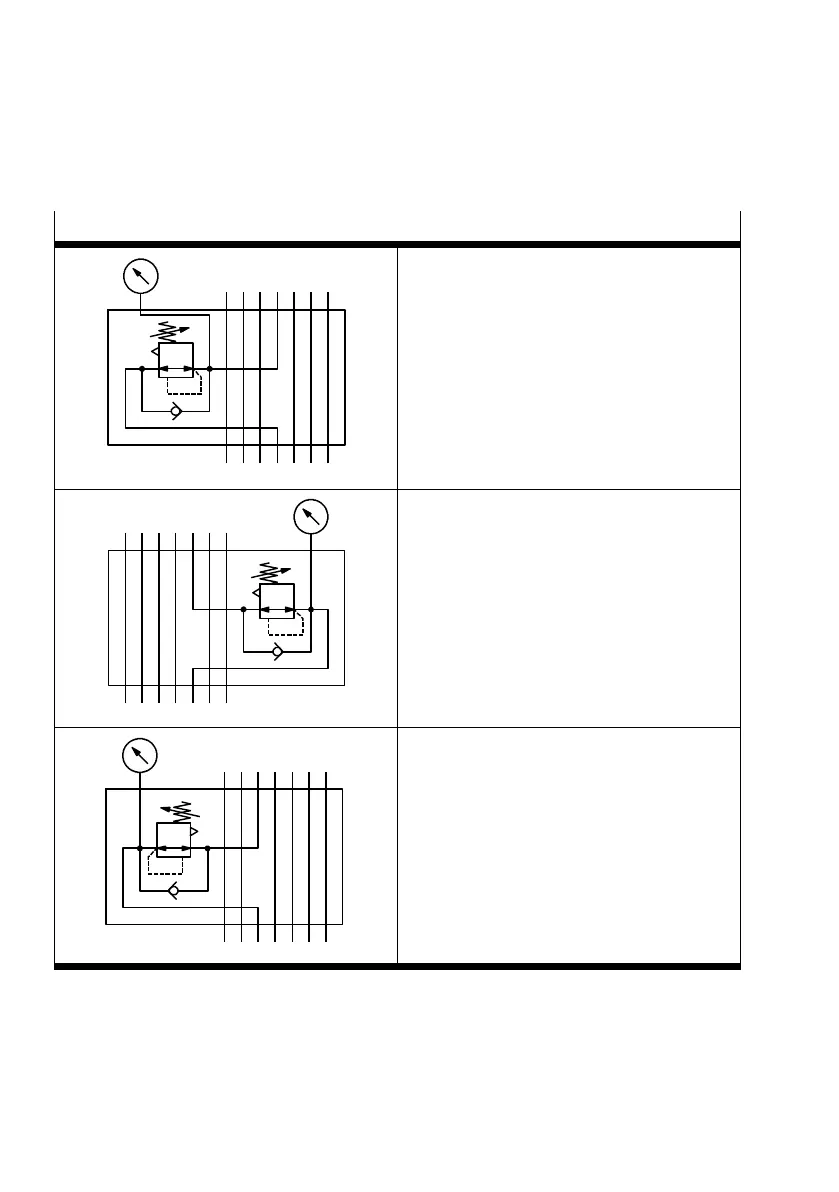

Pressure regulator plates
2
4
14
51 312
Pressure regulator plate for port (1) (P regulator)
Ident. c ode: PF or PA
Function:
– Regulates the operating pressure in duct (1)
upstream of the directional c ontrol valve
2
4
14
51312
Pressure regulator plate for port 2 (B regulator)
Ident.code:PHorPC
Function:
– Regulates the operating pressure in
channel (2) downstream of the directional
control valve.
2
4
14
51312
Pressure regulator plate for port 4 (A regulator)
Ident. c ode: PG or PB
Function:
– Regulates the operating pressure in
channel (4) downstream of the directional
control valve.
