B. Supplementary component summary
B-11
Festo P.BE-MPA-EN en 1108e
Pressure regulator plates
2
4
14
51312

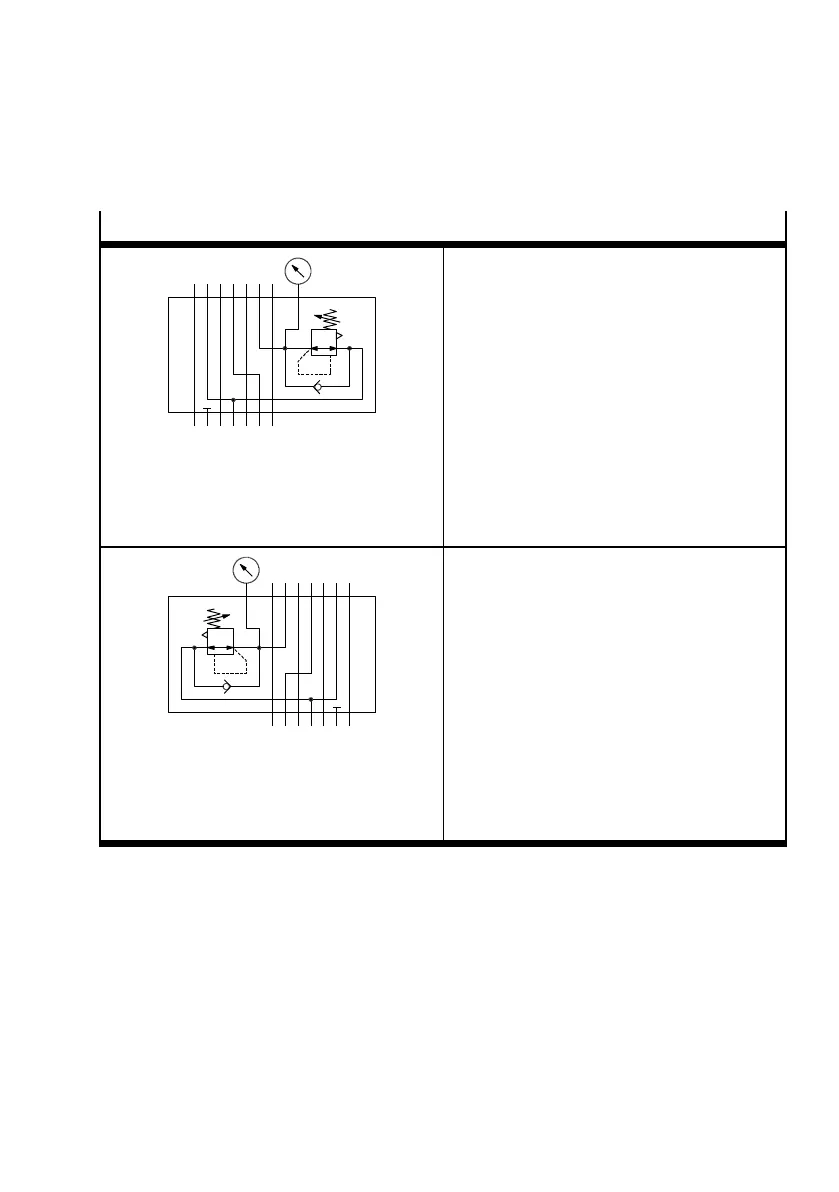

Pressure regulator plate for port (2), reversible
(B regulator)
Ident. c ode: PN or PL
Function:
– Channels the operating pressure upstream of
the directional control valve from channel (1)
to channels (3) and (5)
– Regulates the pressure in channel (3)
upstream of the directional c ontrol valve.
– Conducts the exhaust from channel 1 to
channel (3) after the directional c ontrol valve
Notes:
Combinations with 2x2/2-way valves
(Ident. codes D and I) and 2x3/2-way valves
(ident. codes H, K and N) are not permitted.
2
4
14
51312
Pressure regulator plate for port (4), reversible
(A regulator)
Ident. c ode: PM or PK
Function:
– Conducts t he o perating pressure from
channel 1 to channels (5) and (3)
– Regulates the pressure in channel (5)
upstream of the directional c ontrol valve.
– Channels t he exhaust air downstream of the
directional control valve from channel (1) to
channel (5)
Notes:
Combinations with 2x2/2-way valves
(Ident. codes D and I) and 2x3/2-way valves
(Ident. codes H, K and N) are not permitted.
Tab. B/5: Pressure regulator plates for regulating outputs (1), (2) and (4)
