B. Supplementary component summary
B-12
Festo P .BE-MPA-EN en 1108e

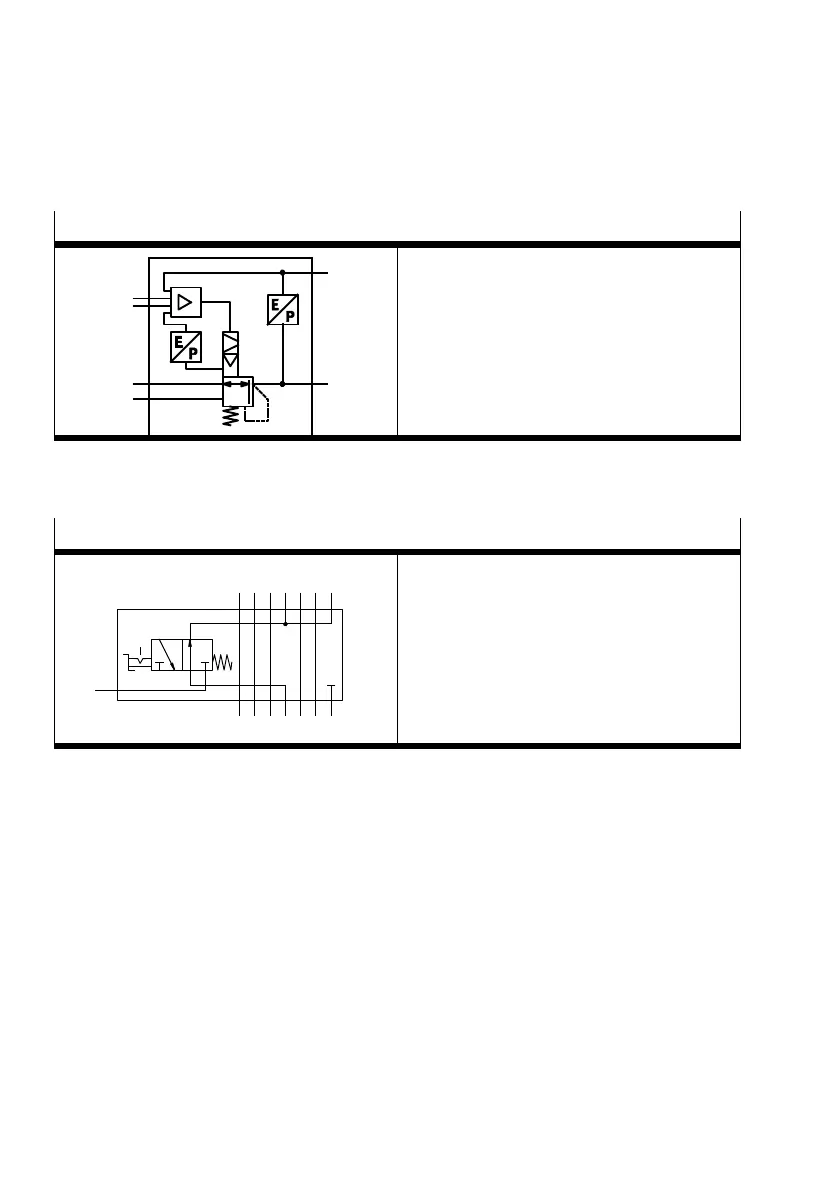

Proportional-pressure regulator VPPM-…TA-...
+w
-w
3
1
2
x
Ident. code: QA, QB, QC, QD, QE, QF, QG, GH, GK,
QL, QM, QN
Function:
– Regulates the pressure proportional to a
specified nominal value
Tab. B/6: Proportional-pressure regulator
Vertical pressure shut-off p late VMPA1-HS
4
2
33
82/84
51
3
12/14
12/14
Ident. c ode: PS
Function:
– Permits a valve change under operating and
pilot pressure
Tab. B/7: V ertical pressure isolating plate
