1. Summary of components
1-24
Festo P .BE-MPA-EN en 1108e
Components
Single-solenoid 5/2-way valves
Alternative:
2x2/2-, 2x3/2-way valve or a
5/2-wa y double pilot valve o r a
5/3-way mid-position valve
Alternative:
Cover plate, for sealing an
unused valve location
Type: MPA...
Pressure regulator plate type: VMPA...-B8-R...
(with or without pressure gauge).
The Tab. 1/10 provides you with an overview of the available
pressure regulator plate variants.
The “Pressure regulator plate” section describes the functions of the
major pressure regulator plates.
Vertical stackin
Vertical stacking
1)
Vertical pressure shut-off plate type VMPA1-HS
The following section describes the functions of the vertical
pressure shut-off plate.
Sub-base type MPA...-...-AP-... with electronic module type
VMPA...-...E M...
1)
For notes on installing the vertical stacking components, see Chapter 3

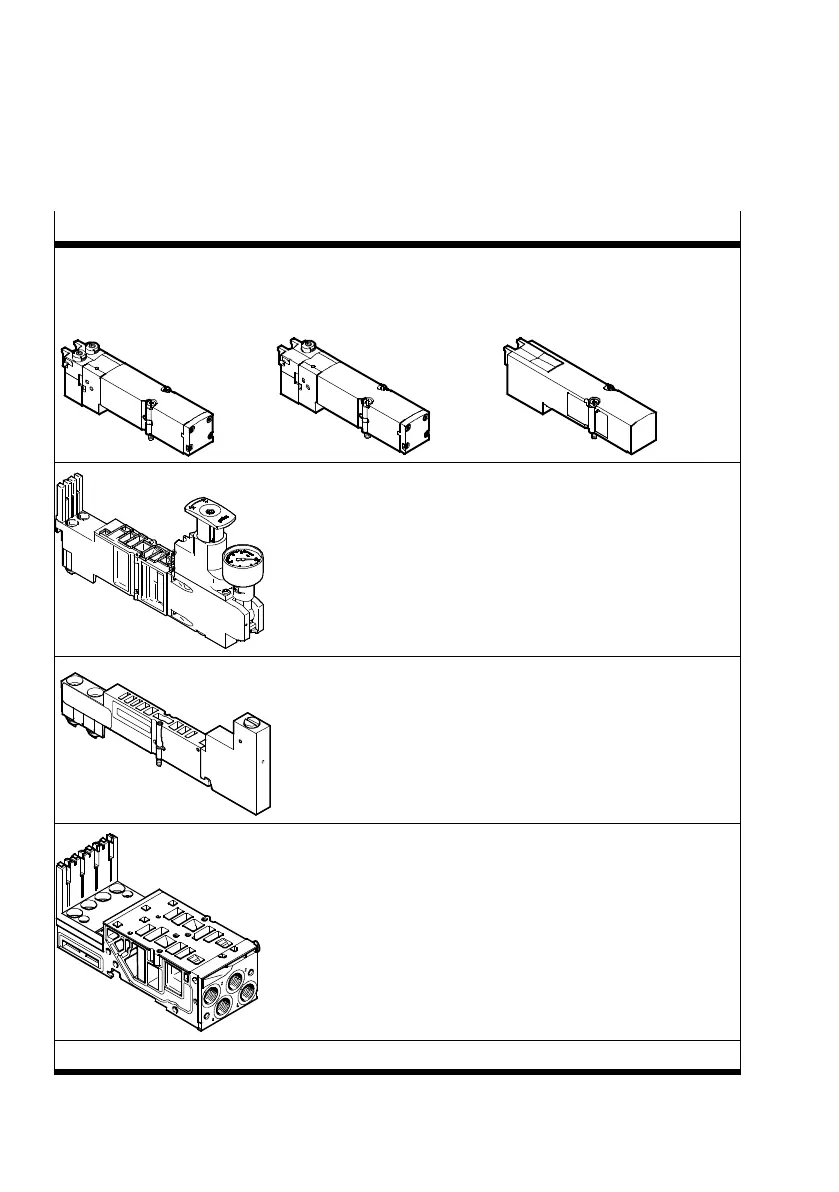

Tab. 1/9: Components of the pneumatic module of the MPA-S valve terminal
