1. Summary of components
1-35
Festo P.BE-MPA-EN en 1108e
On the pressure regulator plate you will find the following
connecting and o peratingelements:
2
1
4
3
3
2
1
5
1
6
1
Adjusting screw for pressure regulator
plate MPA1
2 Pressure gauge (optional)
3 Connection for pressure gauge
(can be turned 90°)
4 Pressure regulator plate MPA2
adjusting knob with free-wheeli ng and
snap-in locking
5 Connection M5 with blanking plug
6 Connection M5 with QS-fitting

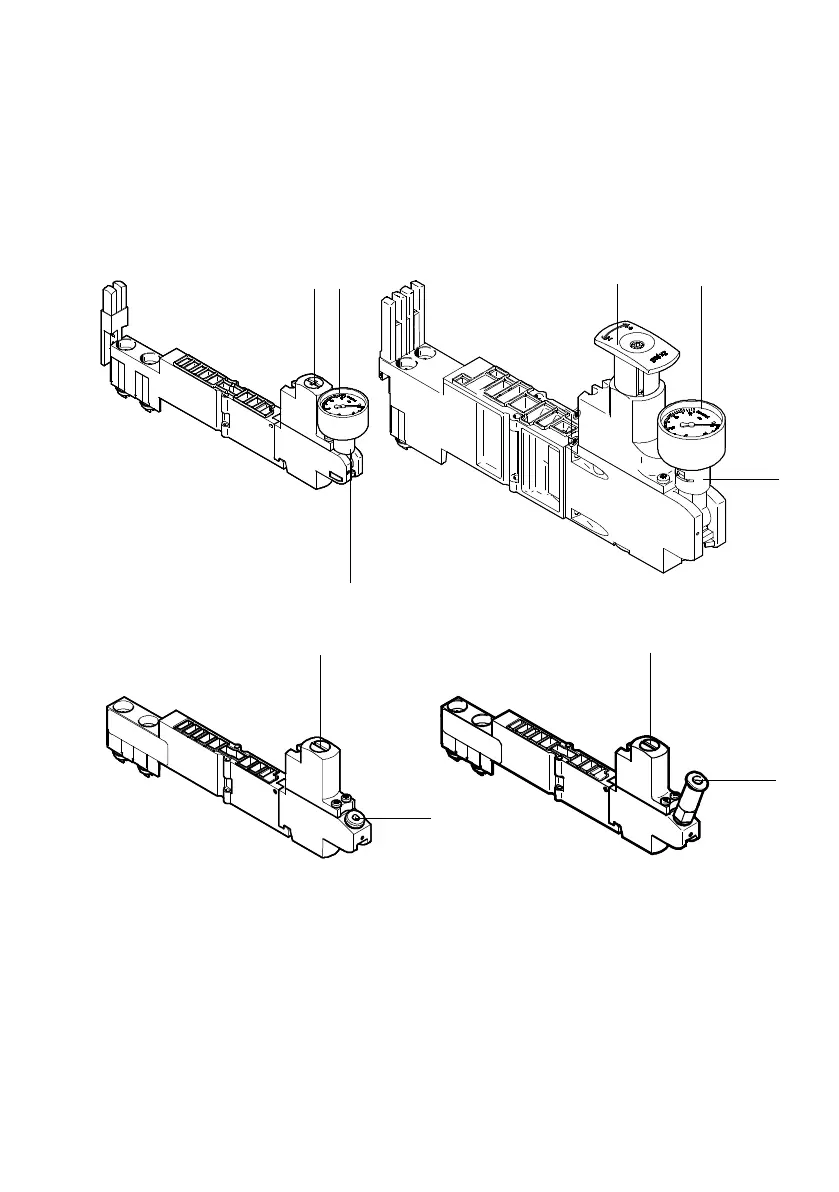

Fig. 1/15: Operating and connection elements of the pressure regulator plates
