2. Fitting
2-6
Festo P .BE-MPA-EN en 1108e

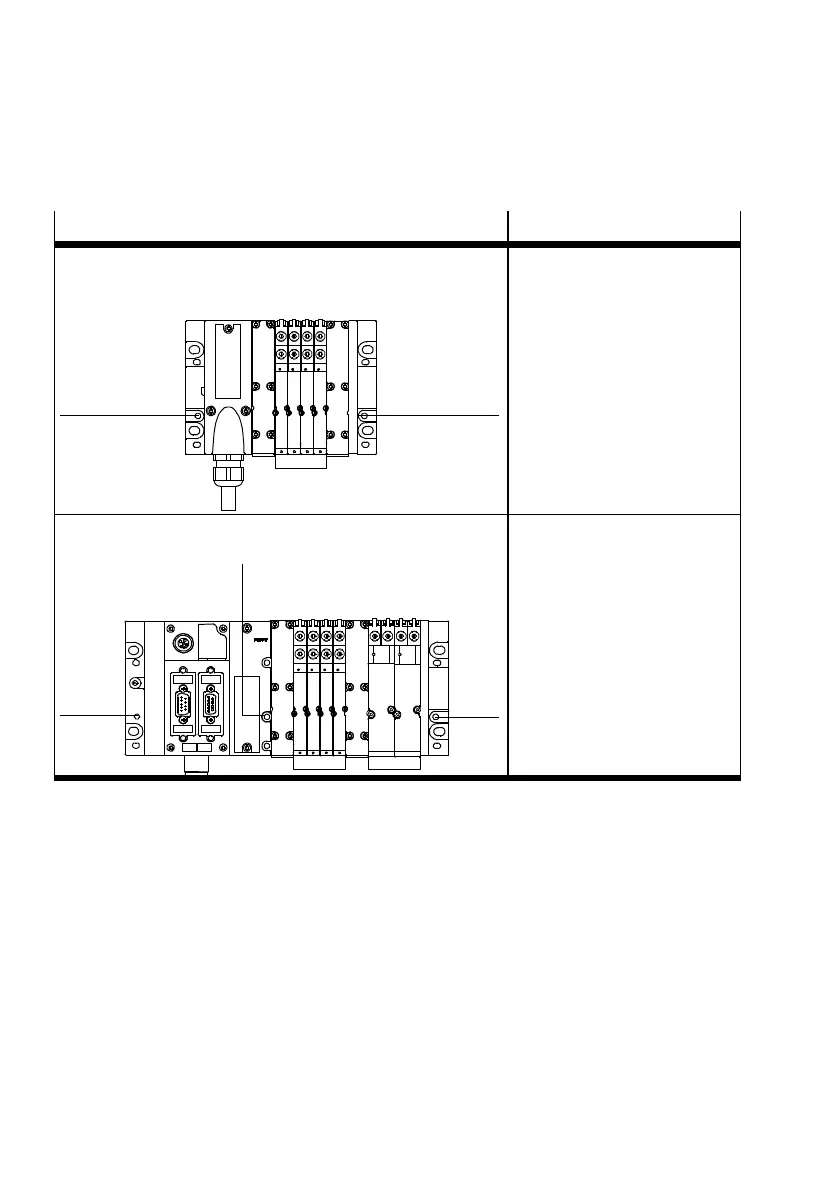

Variant Fastening points
1
MPA-S valve terminal with multi-pin plug connection
1
Required mounting of the H-rail
clamping units:
In the right-hand end plate
and the multiple connector
plate:
each with one M4 screw 1
1
1
MPA-S valve terminal with CPX terminal
2
Required mounting of the H-rail
clamping units:
–Intheendplates:
each with one M4 screw 1
In the pneumatic interface:
with an M4 screw 2
Tab. 2/2: Required mounting points for mounting on H-rails
Mounting Proceed as follows:
1. Make sure that the fastening surface can support the
weight of the MP A-S valve terminal
(weights see Appendix A, Tab. A/1).
2. Mount the H-rail (DIN mounting rail EN 60715 - 35x7.5;
width 35 mm, height 7.5 mm). Make sure there is
sufficient space for connecting the power supply cables
and tubing. Fasten the H-rail to the mounting surface at
intervals of approx. every 100 mm.
