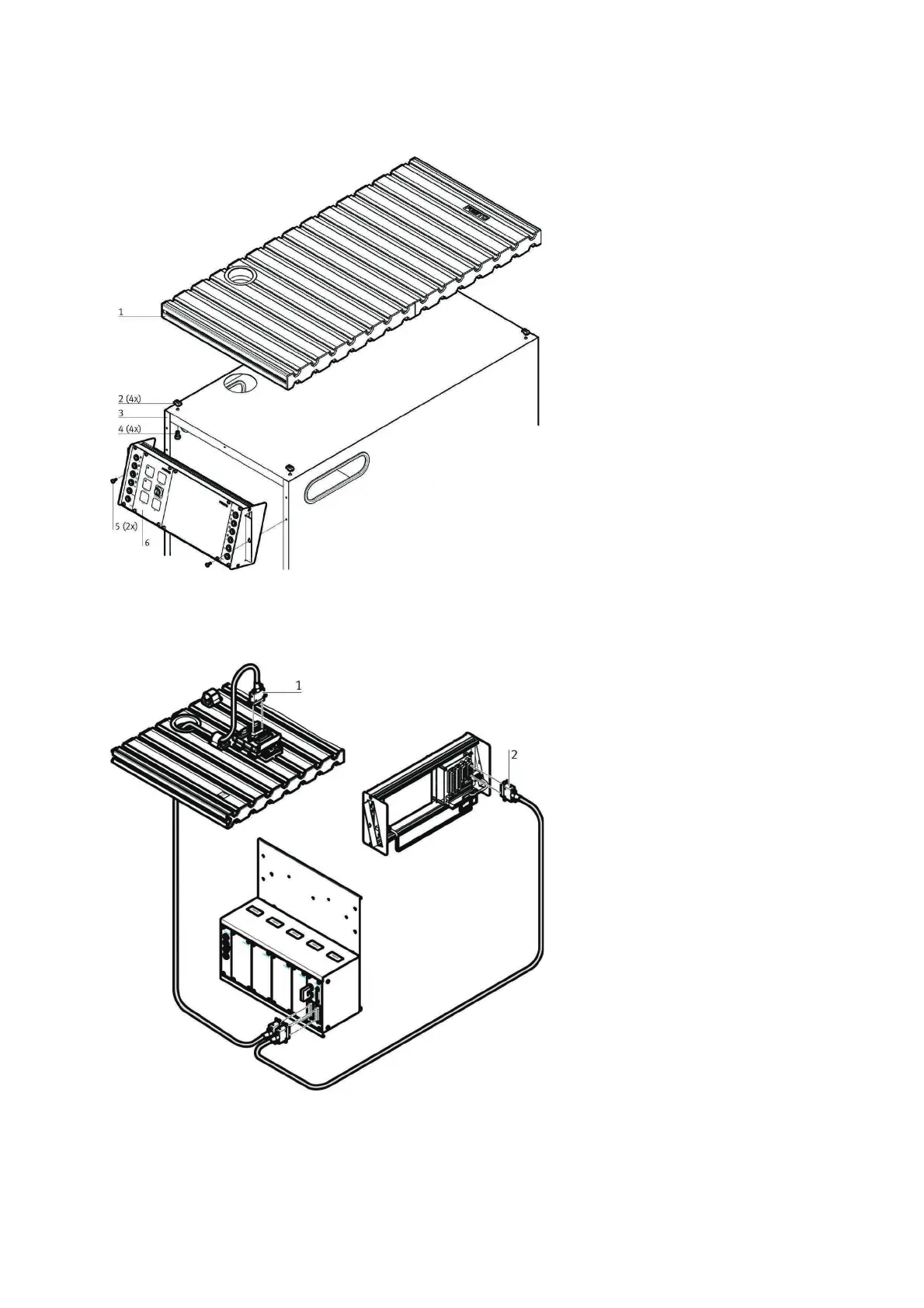

12.3 Mounting the profile plate and the control console
1 Profile plate
2 T-head nut, M6-32 (4x)
3 Carriage
4 Serrated washer, J6.4 (4x)
5 Washer, B-6.4 (4x)
6 Socket head screw, M6 x 10 (4x)
7 Self-tapping screw, 3.5 x 9 (2x)
8 Control console
12.4 Cable connections
1 PLC board to station
When using the SysLink 19" system
plug module: connect socket A to the
SysLink socket of the C interface or the
SysLink socket of the station’s digital
I/O terminal using a SysLink cable.
2 PLC board to control console
When using the SysLink 19" system
plug module: connect socket B with a
SysLink cable to the SysLink socket of
the control console.
PLC board to power supply
Insert the 4 mm safety plugs into the
sockets on the power supply.
PC to PLC
Connect your PC to the PLC using a
programming cable.
