Finometer® Model-2 User’s Guide 63
airhose are now at the back of the hand and should point towards
the Frontend Unit.
Make sure the fin3. ger cuff is placed in the middle between the two
4.
5. Guide the cuff cable and air hose be
the
knuckles, touching each knuckle (Figure 6-2).

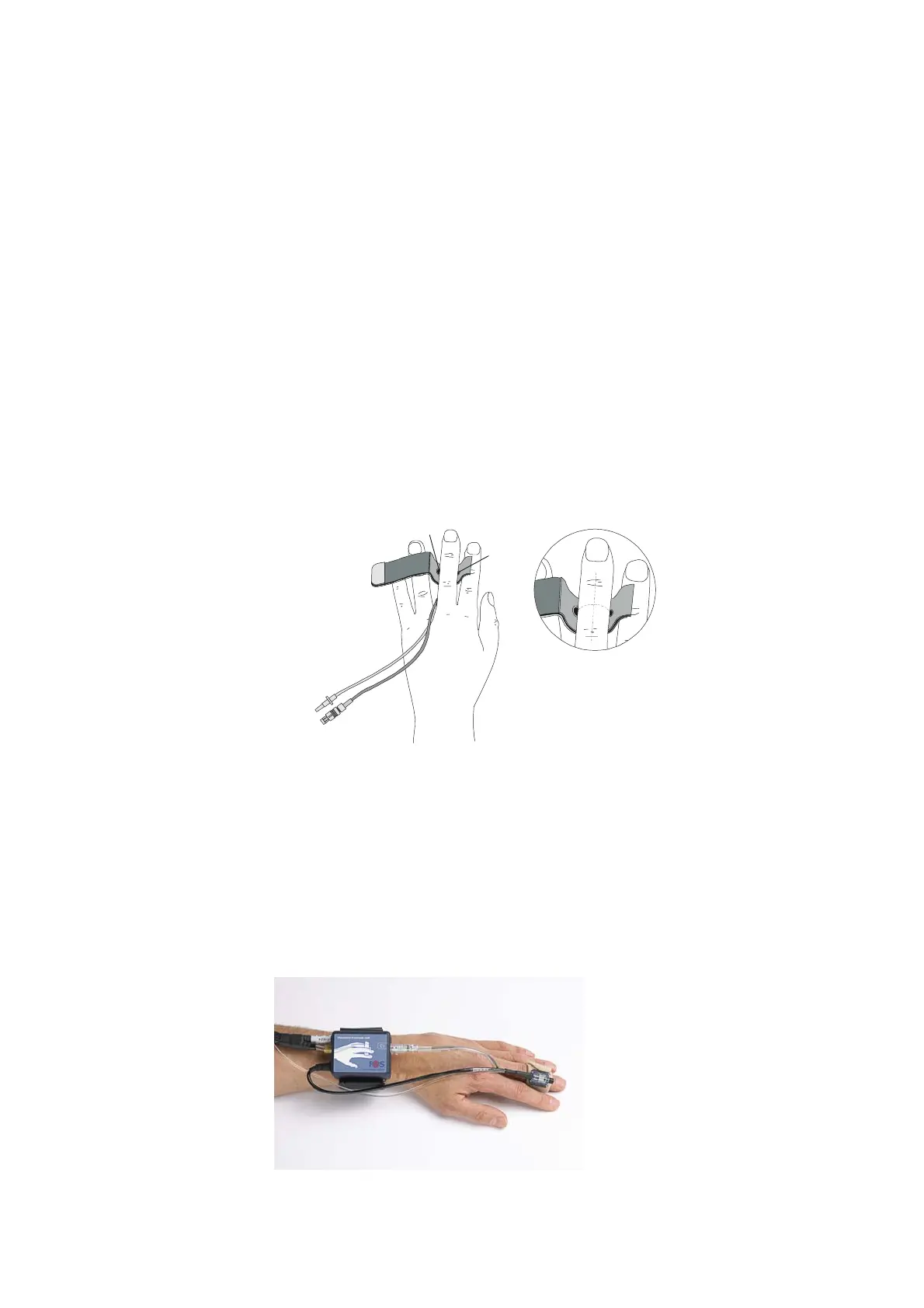

Figure 6-2 Applying the finger cuff
Wrap the finger cuff tightly for best performance. The finger cuffs are
designed in such a way that correct wrapping is almost natural.
Check that it is not easy to rotate the finger cuff after application.
A common mistake is to wrap the finger cuff not tight enough.
tween the fingers to the back of
the hand and connect them to the Frontend Unit which is worn on
wrist (see Figure 6.3).
ure 6.3 Connecting the finger cuff to the Frontend Unit Fig
A
photocell
LED
