WAVEFORM GRAPH
Shows the different waveform graphs
that will be visible on the
MEASUREMENT screen and REVIEW
MEASUREMENT screen.
With the buttons and
it is possible to add and
remove graphs to the screen.
With the and button it is
possible to change the position of the
graph on the screens.
VISIBLE SIGNALS
Shows the different signals that will be
shown in the selected waveform graph.
With the and button it is
possible to change the order of the y-
scales on the left side of the graphs (the
amount of different y-scales is limited to
three, when more signals with different
scaling settings are visible the lower
ones will not have their y-scale available
on the screen).

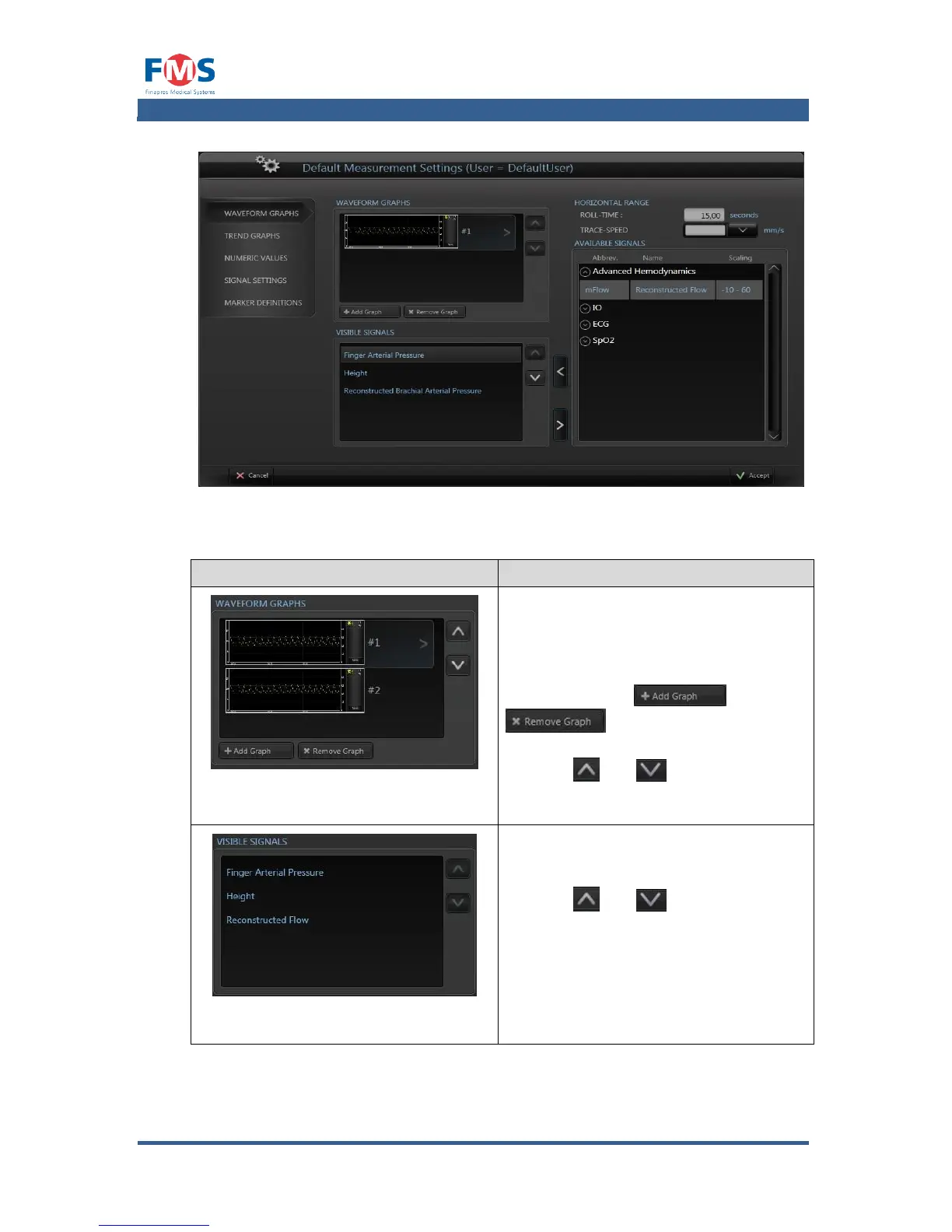

Figure A1-12: The “MEASUREMENT SETTINGS” screen, waveform tab
