TOTALPAC2 Integrated Fire Protection Systems
Mechanical Section - Deluge System
FM-086G-0-24D

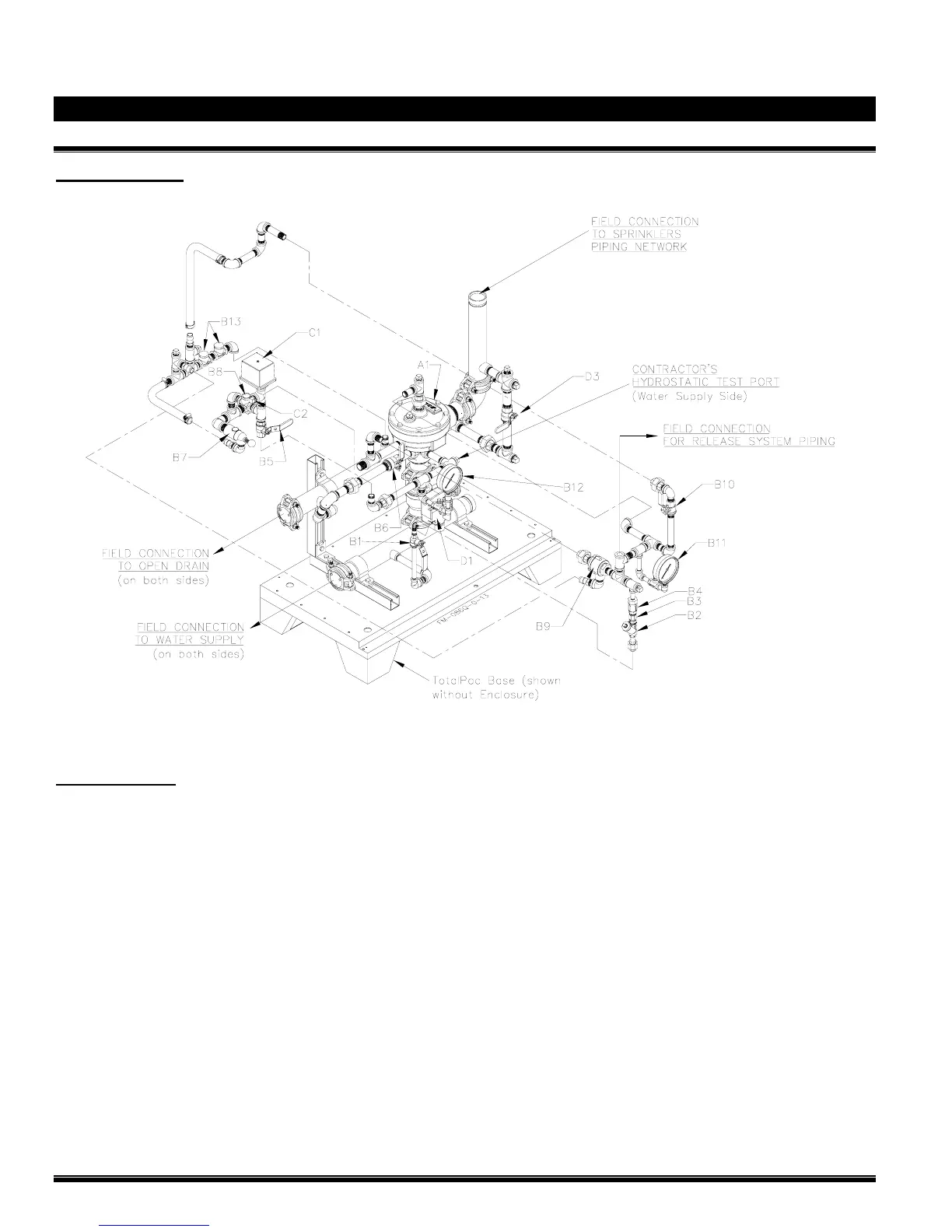

Trim Schematic: Deluge System with Hydraulic
Release
Trim Components:
A. Valve:
A1 Deluge valve
B. Deluge Valve Trim:
B1 Priming valve
B2 Strainer
B3 1/16" Restricted orifice
B4 Spring loaded check valve
B5 Alarm test valve
B6 Flow test valve
B7 Drip check valve
B8 Drain check valve
B9 Pressure operated relief valve (PORV)
B10 Emergency release valve
B11 Priming pressure water gauge & valve
B12 Water supply pressure gauge & valve
B13 Clapper check valve
C. Water Flow Alarm Equipment:
C1 Alarm pressure switch
C2 Connection to water motor gong (strainer supplied
by contractor)
D. Valve:
D1 Water supply control valve
D3 Main drain valve
