TOTALPAC2 Integrated Fire Protection System
Trim Options
FM-086G-0-46C
3. Semi and Full-flanged Option:
When required by the user, TotalPac2 units can be provided
in either a semi-flanged of full flanged configuration.
The semi flanged option provides flanged fittings only on the
water inlet pipe (side needs to be specified at the time of
order) and on the system riser outlet. The drain manifold is
then provided with a threaded end that also needs to have
it's side specified (left or right). The rest of the fittings are the
same as usual with the main components being provided in
the standard flanged -grooved configuration.
The full flanged option is the same as above but goes a step
further with the main components being also provided with a
flanged-flanged configuration.
When provided, the face of the flanges will always be
situated 6 inches from the outside face of the mounting base
or cabinet surface. On skid units, the surface of the flange
on the outlet riser will always be 6 inches above the
dimension shown on the dimensional data of the system
ordered.

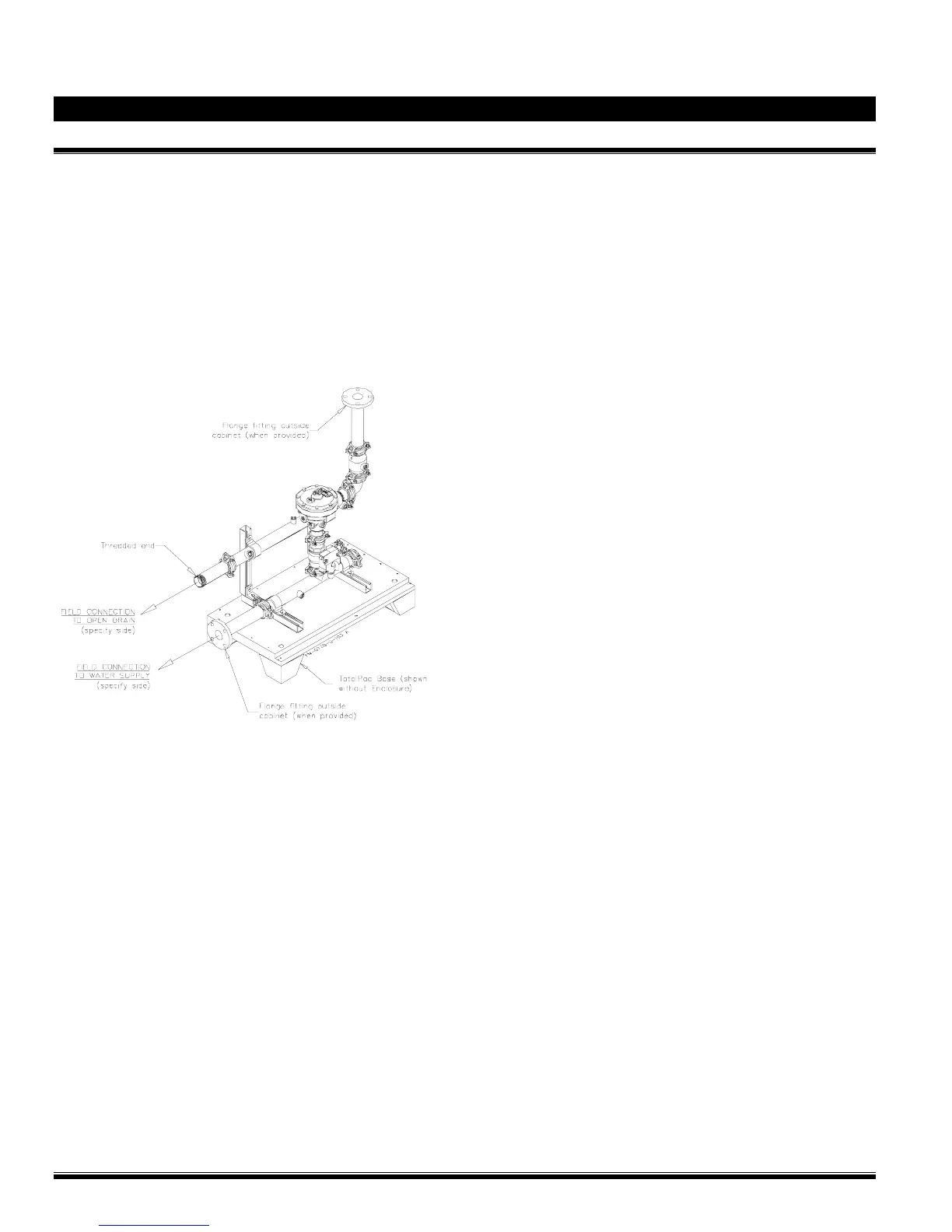

Figure 3 – Semi-flanged unit typical detail:
