FireFlex TOTALPAC2 - Remote Annunciator RA-4410-RC

Page 12 of 12 TOTALPAC2
TOTALPAC2 Integrated Fire Protection System
Deluge System - Programming & Field Wiring Diagram
FM-086G-0-38E


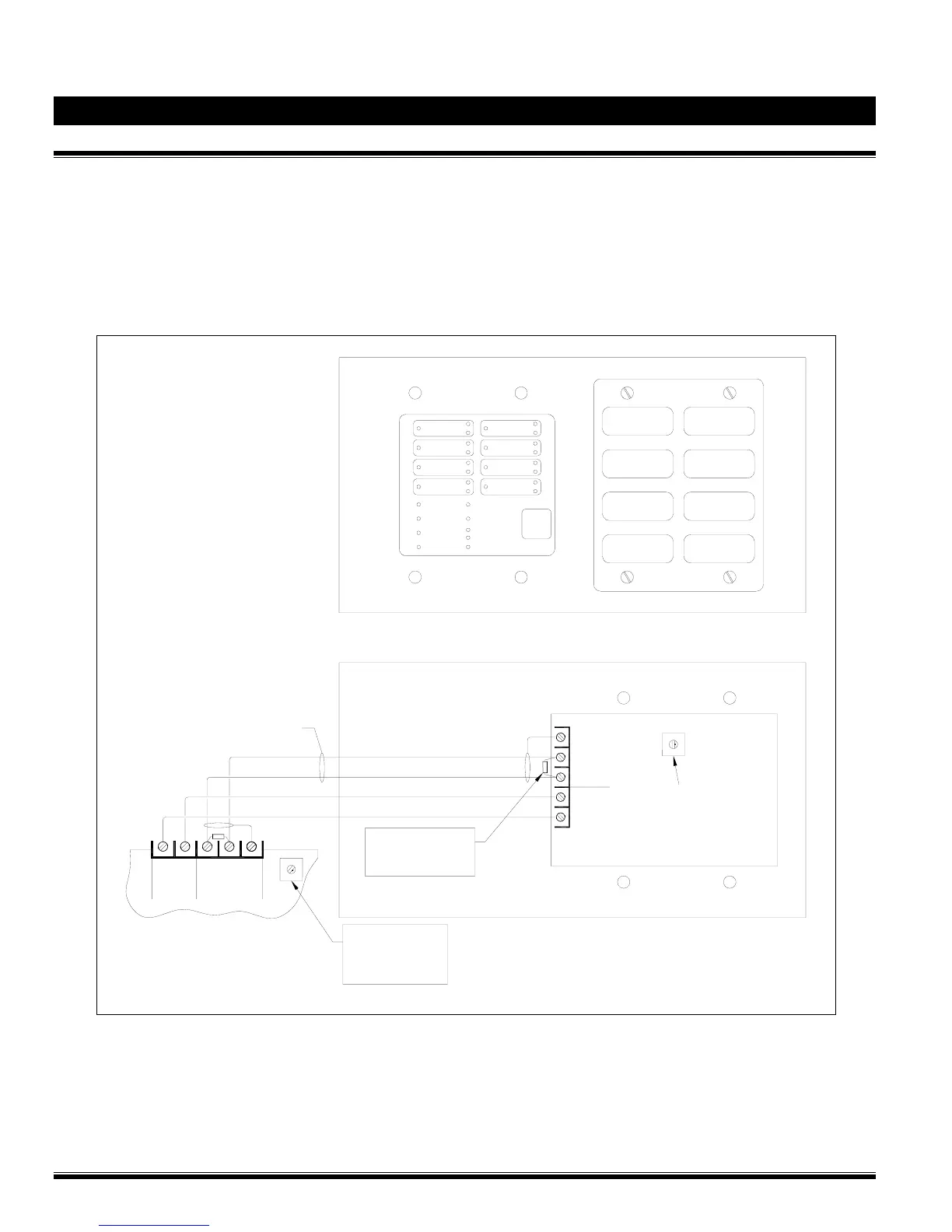

Remote Annunciator RA-4410-RC
The RA-44410-RC remote annunciator is designed to operate with the VFR-400 releasing control panel. There are 34 LED's to
indicate a change in panel status. There is a buzzer on the annunciator that sounds for any trouble or supervisory condition. The
release control panel supervises and communicates with the annunciator via separate connections for the RS-485 communication
and the 24VDC power requirement of the RA-4410-RC. Separate cables should be used for power and communication. Shielded
cable MUST be used for the RS-485 communication line. Up to four remote annunciator can be connected to one control panel.
TB1
RS-485
24VDC
non reset.
EOL
EOL
VFR-400 main board
ANNUNCIATOR
ADDRESS
SWITCH
NOTE:
REMOVE 120ohms
RESISTOR ON ALL
BUT LAST RA-4410-RC
ANNUNCIATOR
SELECTOR SWITCH,
SHOWN SET FOR 1
ANNUNCIATOR
CONNECTED.
SHIELDED CABLE
FM-086V-0-13A
RA-4410-RC
OUTPUT 1
ZONE 1
OUTPUT 2ZONE 2
OUTPUT 3ZONE 3
OUTPUT 4ZONE 4
ZONE 1
ZONE 2
ZONE 3
ZONE 4
OUTPUT 1
OUTPUT 3
OUTPUT 4
OUTPUT 2
AC POWER
POWER
TROUBLE
SYSTEM
TROUBLE
GROUND
FAULT
SUPERVISORY
TROUBLE
STEADY : DISCHARGED
FLASHING : PRE-DISCHARGE
SUPERVISORY
COMMON ALM.
ALM. SILENCE
LAMP TEST
SILENCE
4
5
3
2
0
1
6
7
8
9
+
-
+
-
S
S+
-
+
-
RS-485 24VDC
non reset.
S
4
5
3
2
0
1
6
7
8
9
