Page 8 of 8 TOTALPAC2
TOTALPAC2 Integrated Fire Protection System
Control Section
FM-086G-0-29C

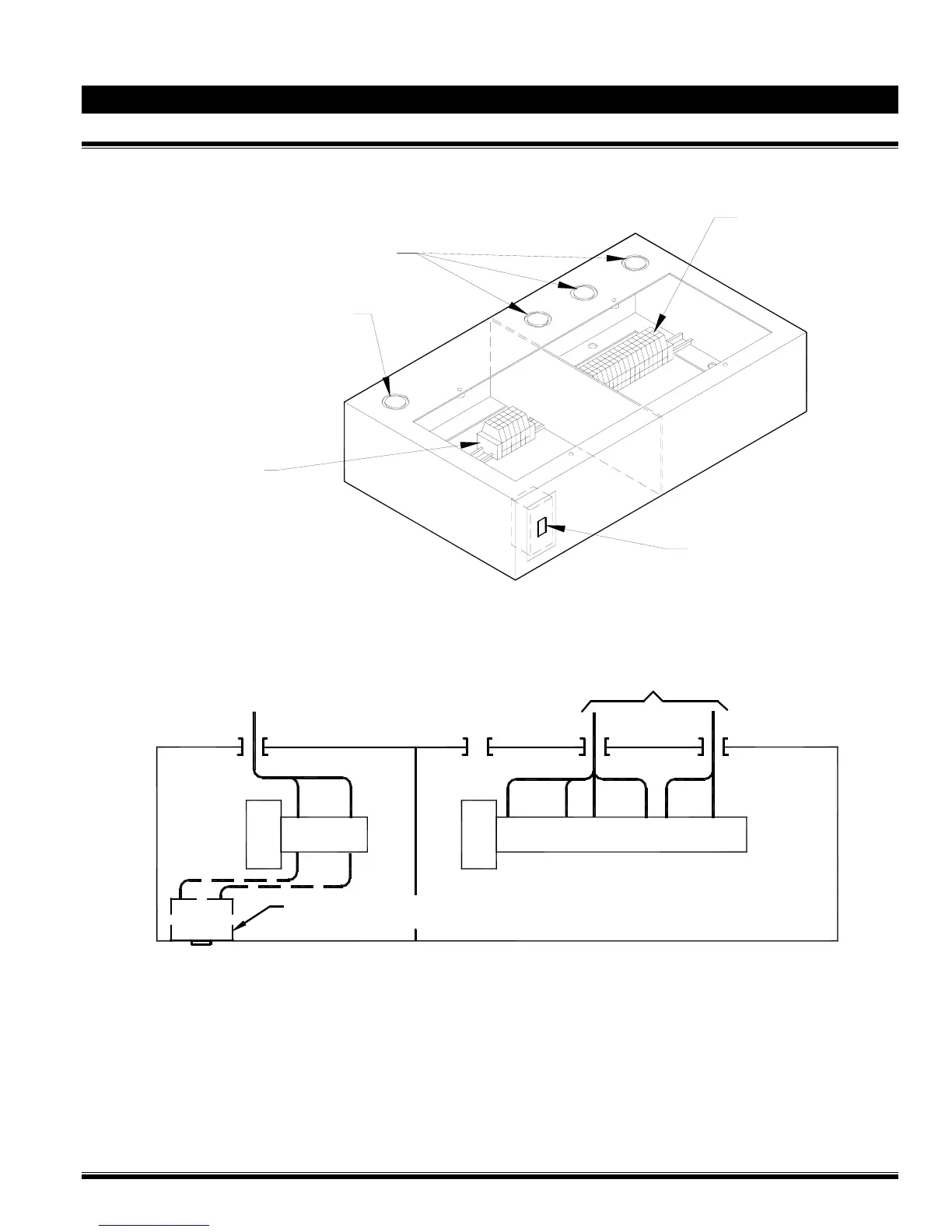

Figure 1: Detail of contractor wiring junction box:
F
M
-
0
7
2
Q
-
0
-
2
9
D
.
d
w
g
NOTE: Junction box shown with coverplate
removed for clarity. See Figure 2 for wiring
routing.
TBA Field Wiring
Terminal Strip
TBB Field Wiring
Terminal Strip
7/8" & 1 1/4" Knockout
for 120/250Vac power feed wiring
7/8" & 1 1/4" Knockouts
for low voltage field wiring
Air Compressor or Excess
Pressure Pump Isolation Switch
(when applicable)
Figure 2 - Wiring routing:
TBB
TBA
AC Power
120V-60Hz or 220V-50Hz
Power Limited Circuits
L1 Flow
Detection
Release
(if applicable)
Supervisory
FM-072Q-0-52 D.dwg
Air Compressor or Excess Pressure Pump
Isolation Switch when applicable
(factory wired)
Wiring shown indicates typical Wiring Routing for Power-Limited circuits. Refer to Field Wiring Diagram in "Programming Section"
for additional details.
