T OTAL P AC 2 Integrated Fire Protection System
Air Supply
FM-086G-0-43E

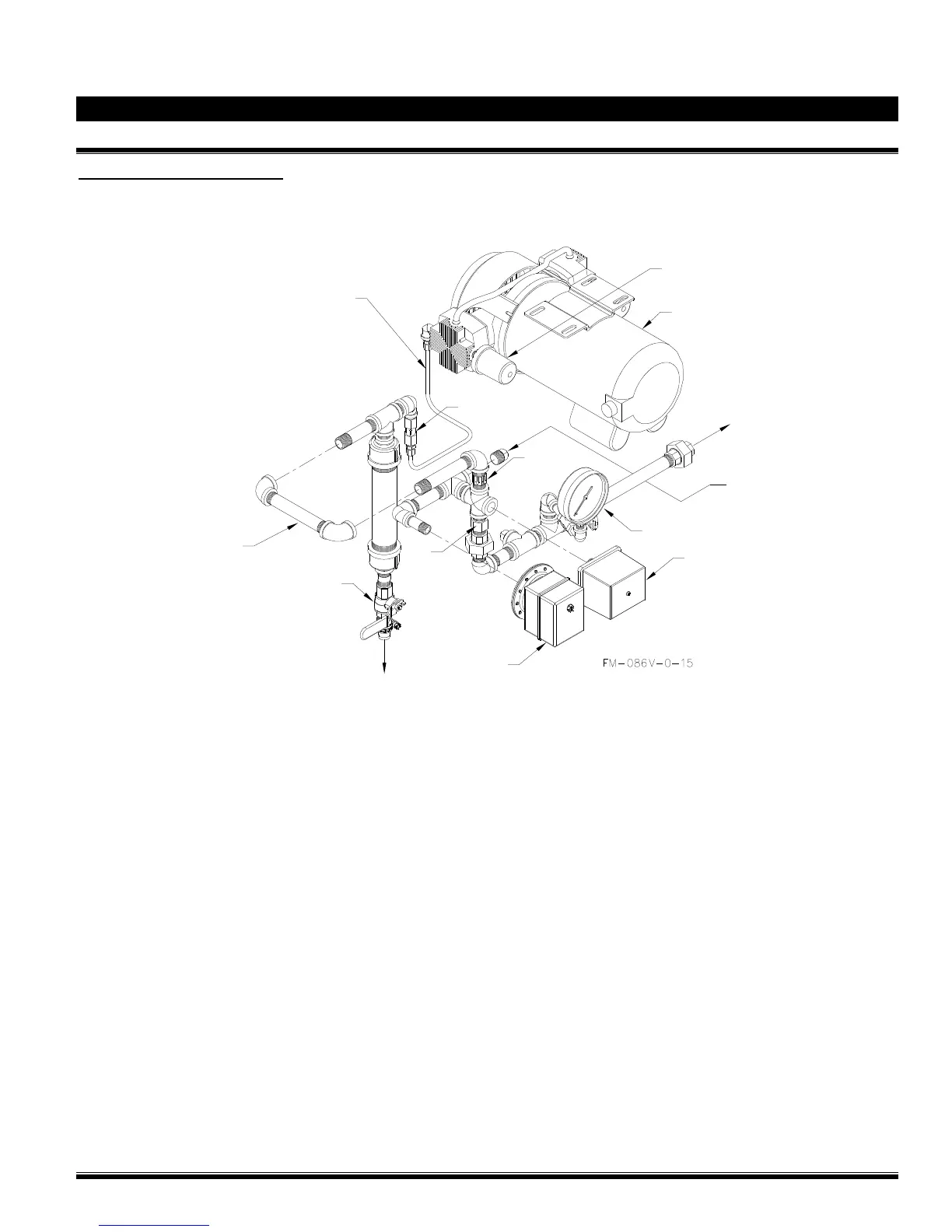

Figure 1 – Air Supply Style "A"
(Cabinet mounted air compressor)
E2
E1
Air compressor filter
E3
E4
E10
E9
E11
E12
Copper tubing
Pipe replaced by
Dehydrator Option
(when used)
Plug removed for
Optional accelerator or
Pneumatic actuator
(when used)
To sprinklers riser
To drain collector
Air Option Components:
E1 Air compressor
E2 Air compressor "Cut-off" pressure switch
E3 System air pressure gauge
E4 Air supervisory pressure switch
E9 Float check valve
E10 Soft-seat check valve
E11 Air compressor check valve
E12 Air option drain valve
E15 Compressor isolating switch (not shown)
Optional Components:
(see Air Supply Options for details)
- Viking Dehydrator
- Accelerator
