2 Integrated Fire Protection System
Air Supply
FM-086G-0-43E

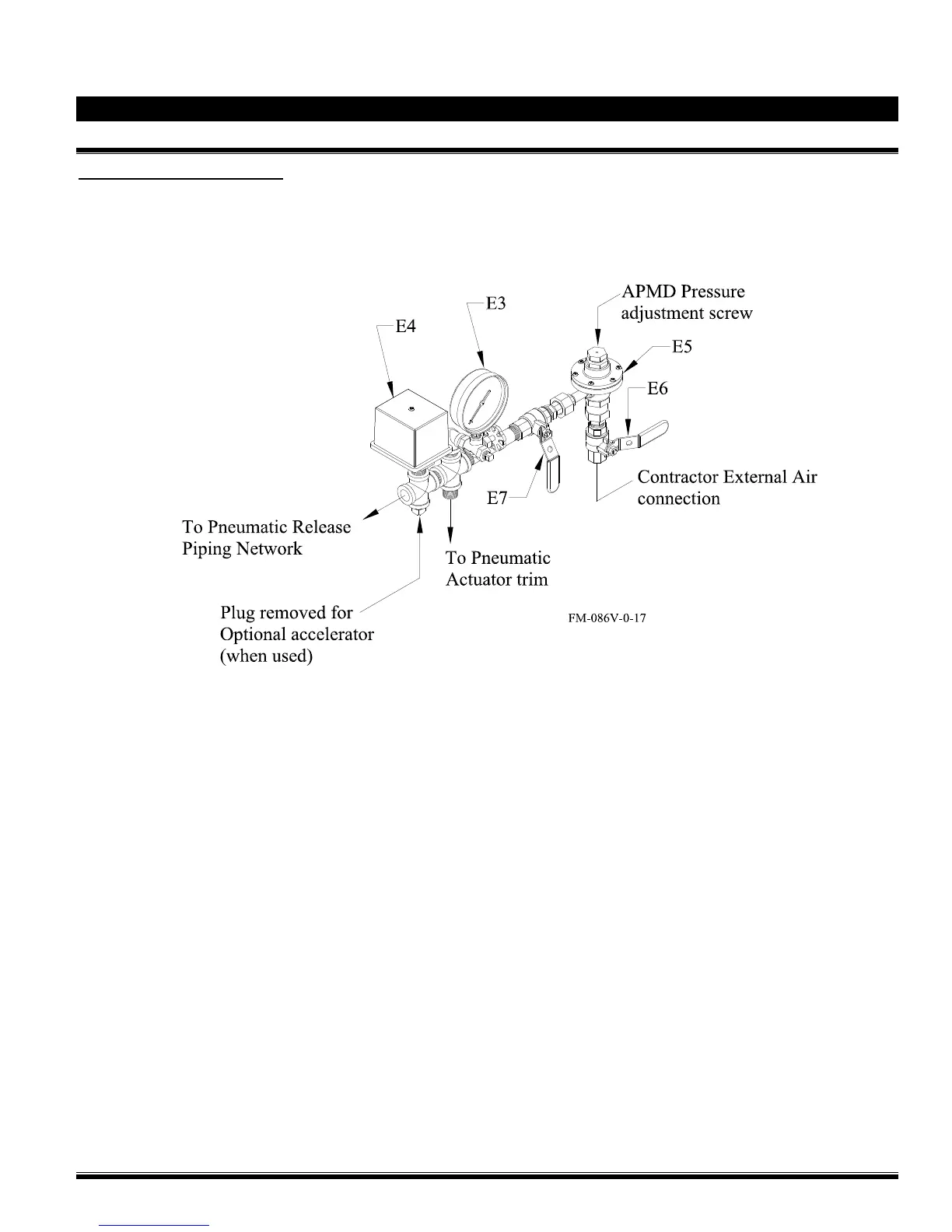

Figure 3 – Air Supply Style "C"
(APMD for Pilot Line release system only)
Air Option Components:
E3 System air pressure gauge
E4 Air supervisory pressure switch
E5 Air pressure maintenance device (APMD)
E6 APMD input valve
E7 APMD output valve
Optional Components:
(see Air Supply Options for details)
- Accelerator
