2 Integrated Fire Protection System
Air Supply
FM-086G-0-43E

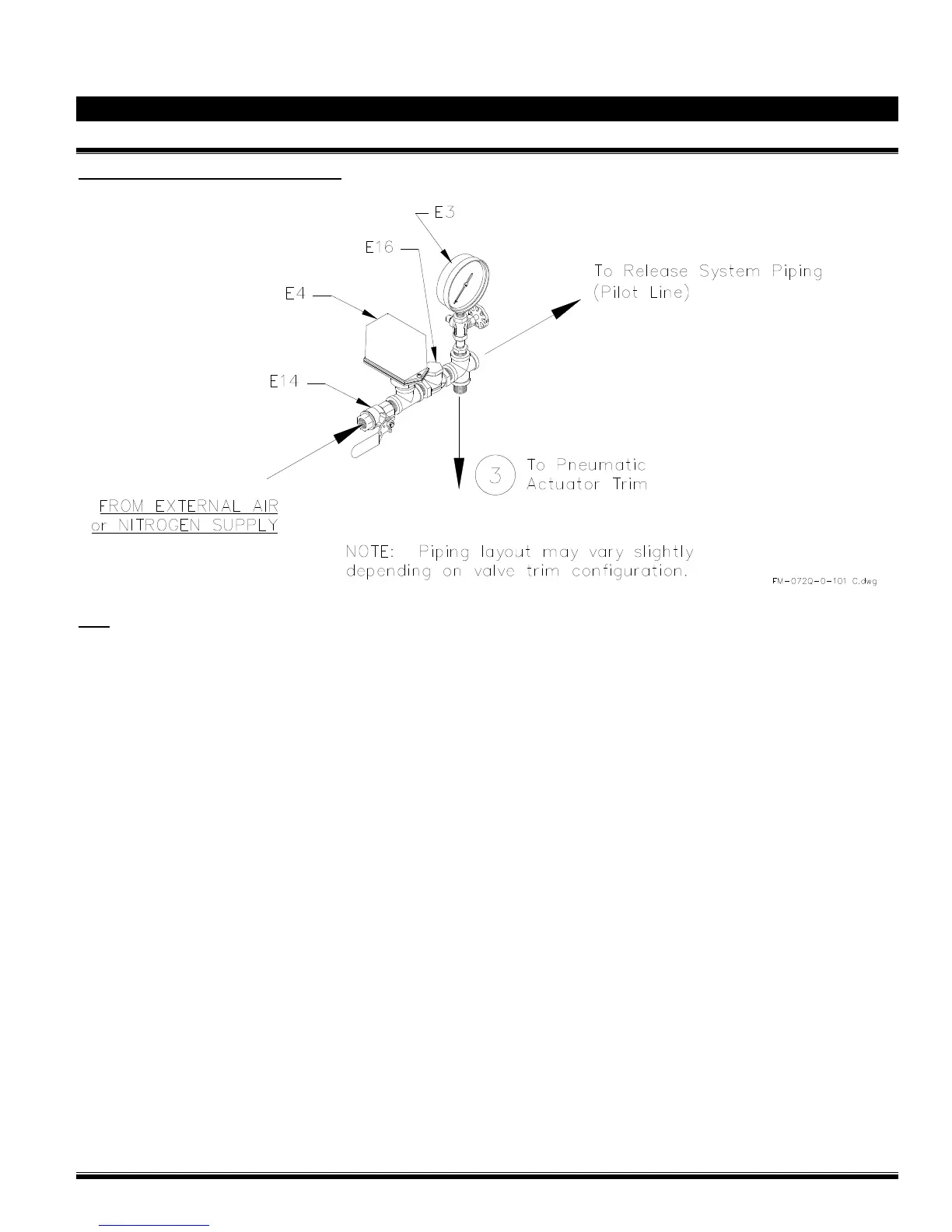

Figure 2 – Skid Air Supply for Pilot Line
(Air supply connection only for external air supply )
Note: The external air supply must be restricted to insure that it cannot replace air as fast as it escapes when a releasing device or
sprinkler operates.
Air Option Components:
E3 System air pressure gauge
E4 Air supervisory pressure switch
E14 Air shut-off valve
E16 Swing check valve
Optional Components:
(see Air Supply Options for details)
- Accelerator
