TOTALPAC2 Integrated Fire Protection System

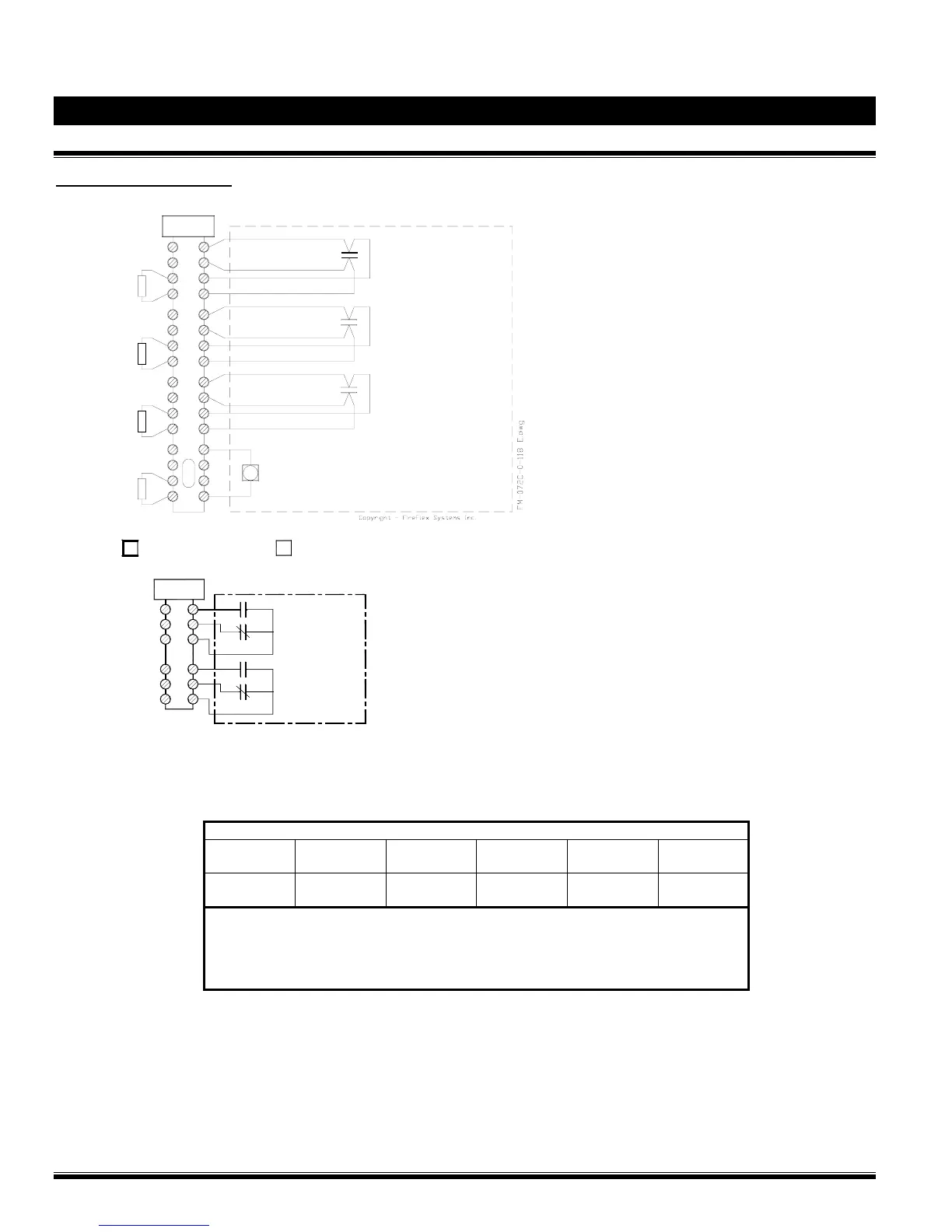

Deluge System - Programming & Field Wiring Diagram
FM-086G-0-38E
Field wiring diagrams
:
4
3
WATER FLOW
+
-
MAIN VALVE
DFL
MAIN VALVE
SUP'V SWITCH
8
7
+
-
5
6
TEST VALVE
DFL
SUP'V SWITCH
TEST VALVE
12
11
-
+
10
9
-
+
14
13
SOLENOID VALVE
S
(See table below for details)
N.C. SOLENOID VALVE
USED ONLY WITH
SHUT-OFF VALVE &
SIGHT-GLASS OPTION
(OPTIONAL)
FACTORY WIRED DEVICES
NOTES:
- ALL DEVICES ARE SHOWN IN THEIR
- DRY CONTACTS RATINGS:
PRESS. SWITCHES: 2.5 A. 0-30VDC RESISTIVE / 15A. 30 VAC
USE ONLY WITH POWER LIMITED CIRCUITS
SUPV. SWITCHES: 0.5 A. 125 VDC RESISTIVE / 10 A. 30 VAC
NORMAL SUPERVISORY STATE.
15
16
- USE ONLY END-OF-LINE DEVICES COMPATIBLE WITH THE
WITH THE CONTROL PANEL USED (NOT INCLUDED).
DFL
1
2
TBA
WATER FLOW
SWITCH
DFL
SEE NOTES
ONLY. REPLACE WITH A JUMPER IN OTHER COUNTRIES.
- SOLENOID VALVE EOL RESISTOR REQUIRED IN CANADA
TBC
1
2
3
MAIN VALVE
SUPERVISORY
FACTORY WIRED DEVICES
FM-072Q-0-67 C
LOS ANGELES OPTION CHICAGO OPTION
C
N.O.
N.C.
SUPERVISORY
TEST VALVE
6
5
4
N.C.
C
N.O.
Notes:
1. Contacts provided for connection to the building's central
Fire Alarm Panel.
OPTIONAL
SOLENOID VALVE ELECTRICAL RATINGS
Viking P/N
Description
(De-energized)
Voltage Watts DC Amps
Pressure
Rating
11591 NC 24 VDC 10.0 DC 416 mA
300 psi
(2 068 kPa)
Notes:
1. Solenoid Valve is UL Listed as Fire Protection Special System Water Control Release Service (UL
429A Product category VLTR).
2. Voltage Drop: For proper operation, make sure that voltage at the solenoid valve is at least 85% of
nameplate rating.
