T OTAL P AC 2 Integrated Fire Protection System
System design & Dimensional Data
FM-086G-0-48C
Configuration
System
Size
P S
1½"
34½" 41¾"
2"
34" 41¼"
3"
38⅜" 42⅛"
4"
39⅝" 44¼"
Preaction
6"
48⅝" 54½"

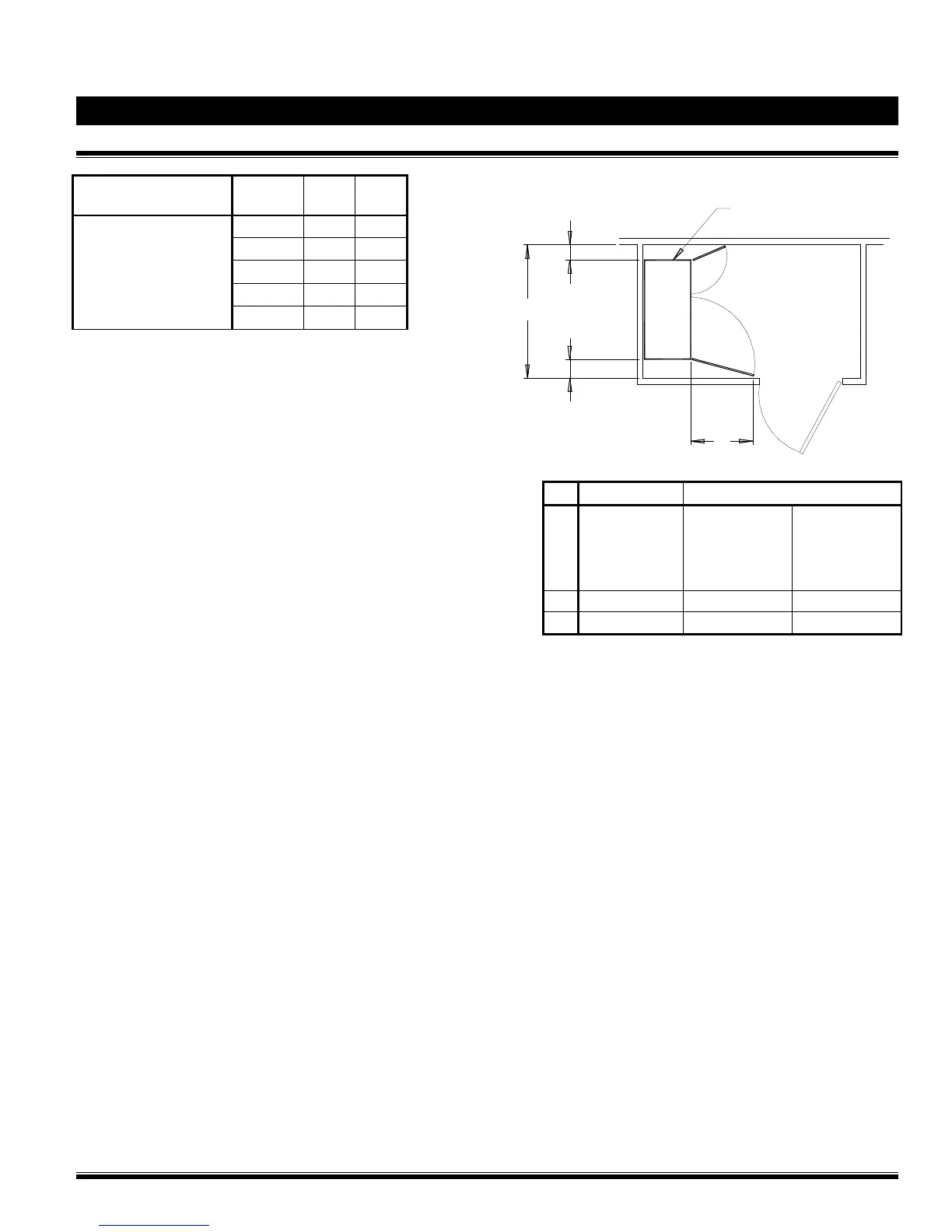

Figure 2 – Cabinet & doors clearance detail
A
C
B
B
Typical
Mechanical Room
TotalPac2 Unit
FM-072Q-0-25 A.dwg
Unit Size Minimum Dimension
A
1 ½"
2"
3"
4"
6"
52"
52"
52"
62"
62"
132 cm
132 cm
132 cm
157,5 cm
157,5 cm
B
All 12" 30,5 cm
C
All 24" 61 cm
