Generator Failure
10.6.16 Kapitel/Chapter 8: Generator Failure - Seite/Page 125
Fig. 8.6.5-5: Generator power terminal box 120 V / 60 HzGenerator Power Terminal Box 120 V / 60 Hz
In these terminal box there are the electrical connection
points for the AC generator. Here is also the bridge for the
protective grounding of the generator. The cover may only be
removed, if it is guaranteed that the generator cannot be
inadvertently started.
representative picture

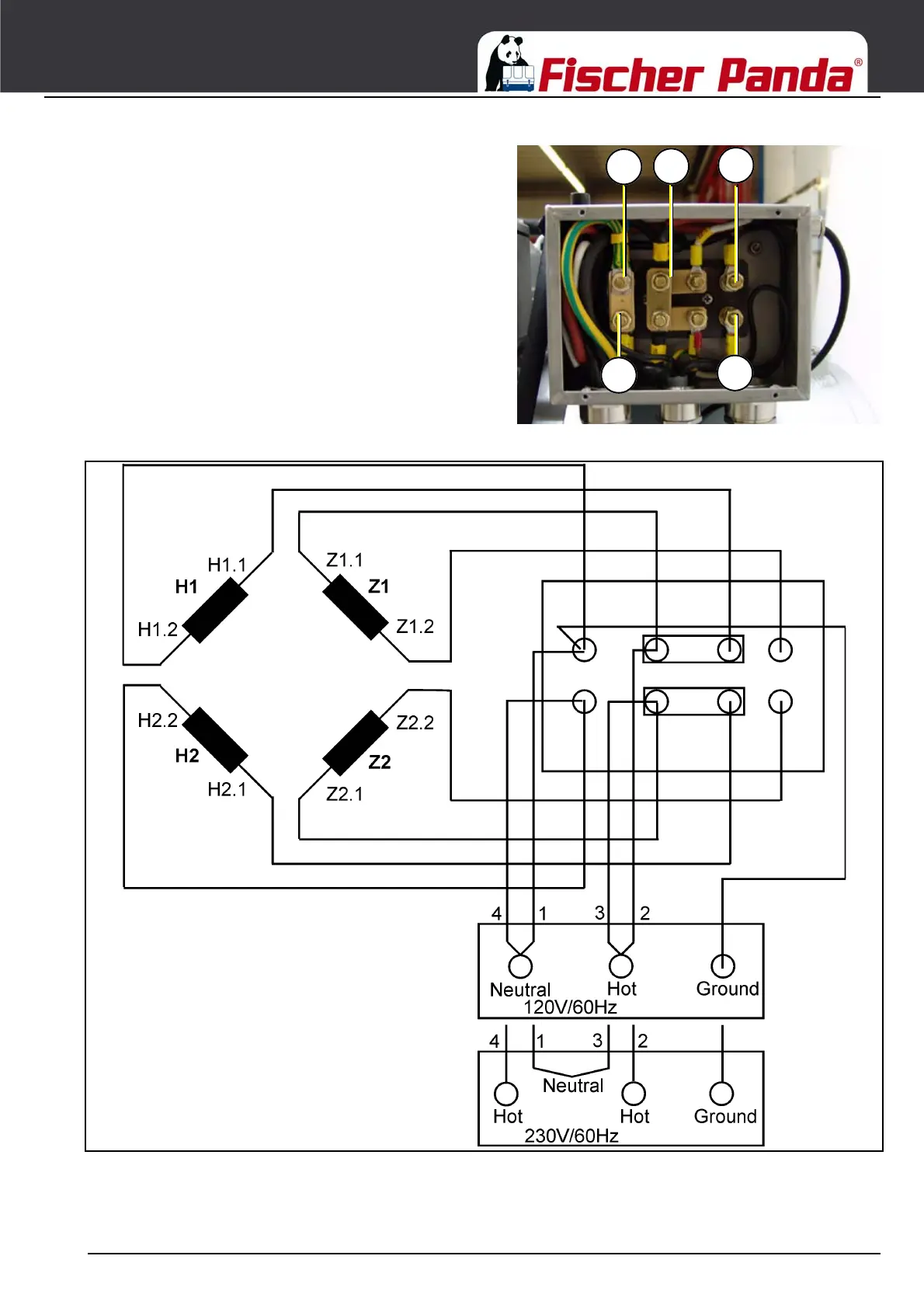

Fig. 8.6.5-6: Wiring diagram HP1 - 120 V / 60 Hz
