Generator Failure
Seite/Page 126 - Kaptitel/Chapter 8: Generator Failure 10.6.16
Fig. 8.6.5-7: Generator power terminal box 240 V / 60 HzGenerator Power Terminal Box 240 V / 60 Hz (208 V /
60 Hz)
In these terminal box there are the electrical connection
points for the AC generator. Here is also the bridge for the
protective grounding of the generator. The cover may only be
removed, if it is guaranteed that the generator cannot be
inadvertently started.
representative picture

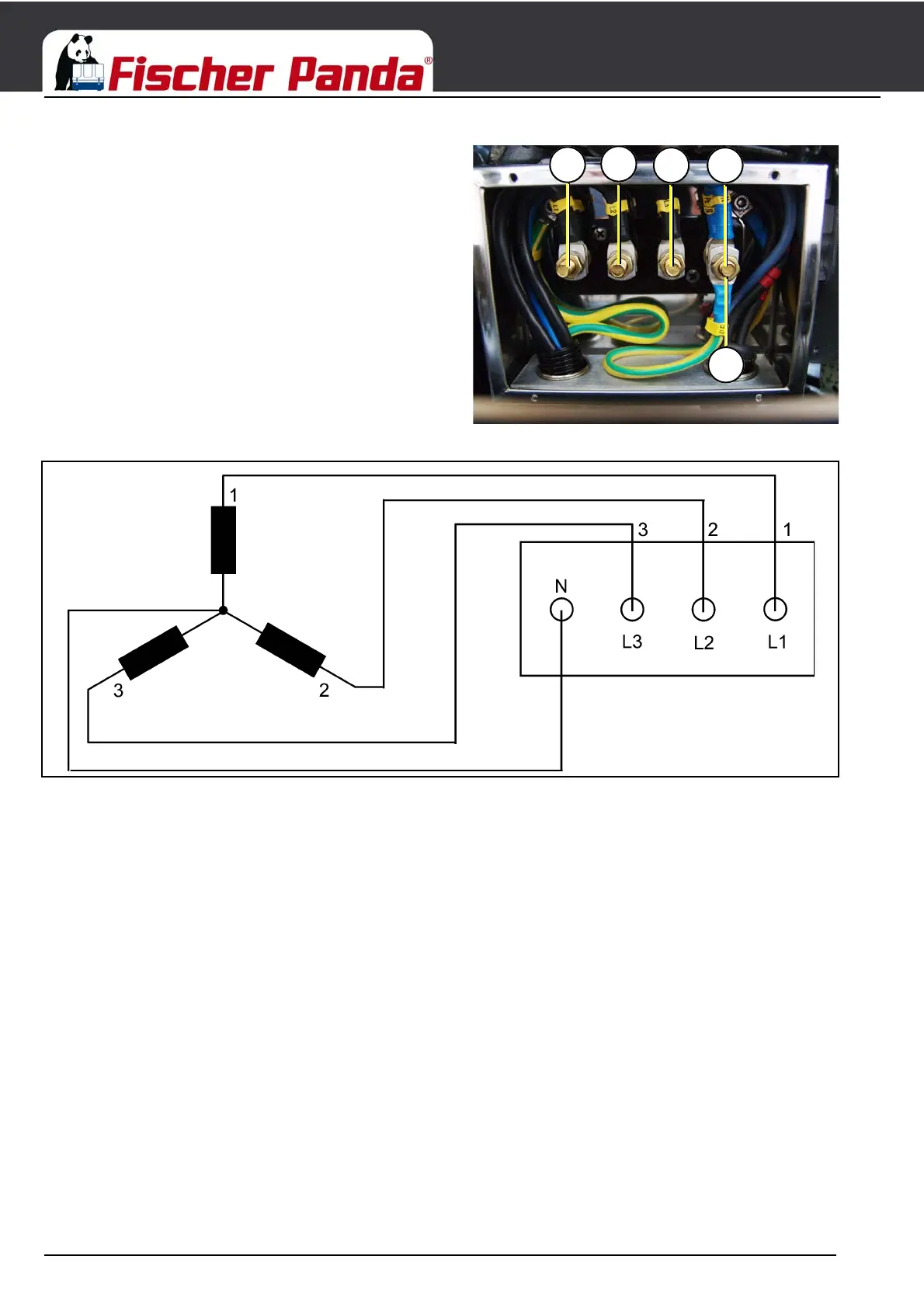

Fig. 8.6.5-8: Wiring diagram HP3 - 240 V / 60 Hz
