3.5 iControl3 Emergency Stop

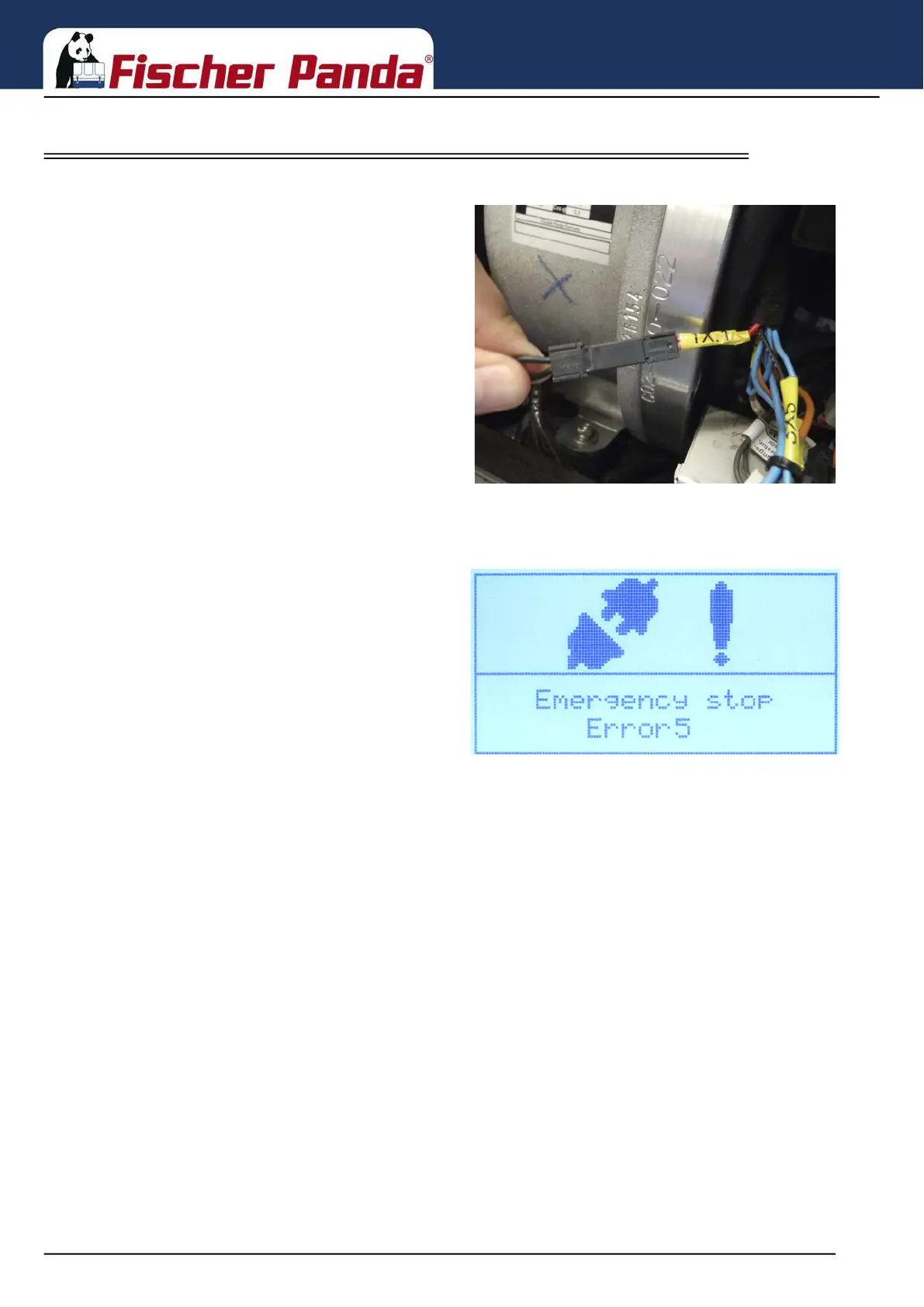

Fig. 3.5-1: Emergency stop bridge in the cable harnessThe iControl3 is prepared for the connection of an
emergency stop. The socket for the emergency stop is in the
cable harness integrated and bridged (1X1, optional
emergency off). The bridge must be removed and the
emergency stop connected.
After the emergency stop is initiated, the servo drives to zero position, all outputs of the iControl3 controller are
switched off and the power supply to the inverter is switched off.
Fig. 3.5-2: Error message »Emergency stop«The Panel shows „Emergency Stop“. The message
disappears as soon as the emergency switch is released.
