Installation

20.10.22 Kapitel/Chapter 4: Installation - Seite/Page 27

4.2.1 Panda iControl3 panel with installation housing

Fig. 4.2.1-1: Panda iControl3 panel, backside with connectors, DIP switch and closed housing

4.2.2 Connectors and switches on the Panda iControl3 panel

There are 6 connectors and a double DIP switches on the backside of the iControl3 panel.

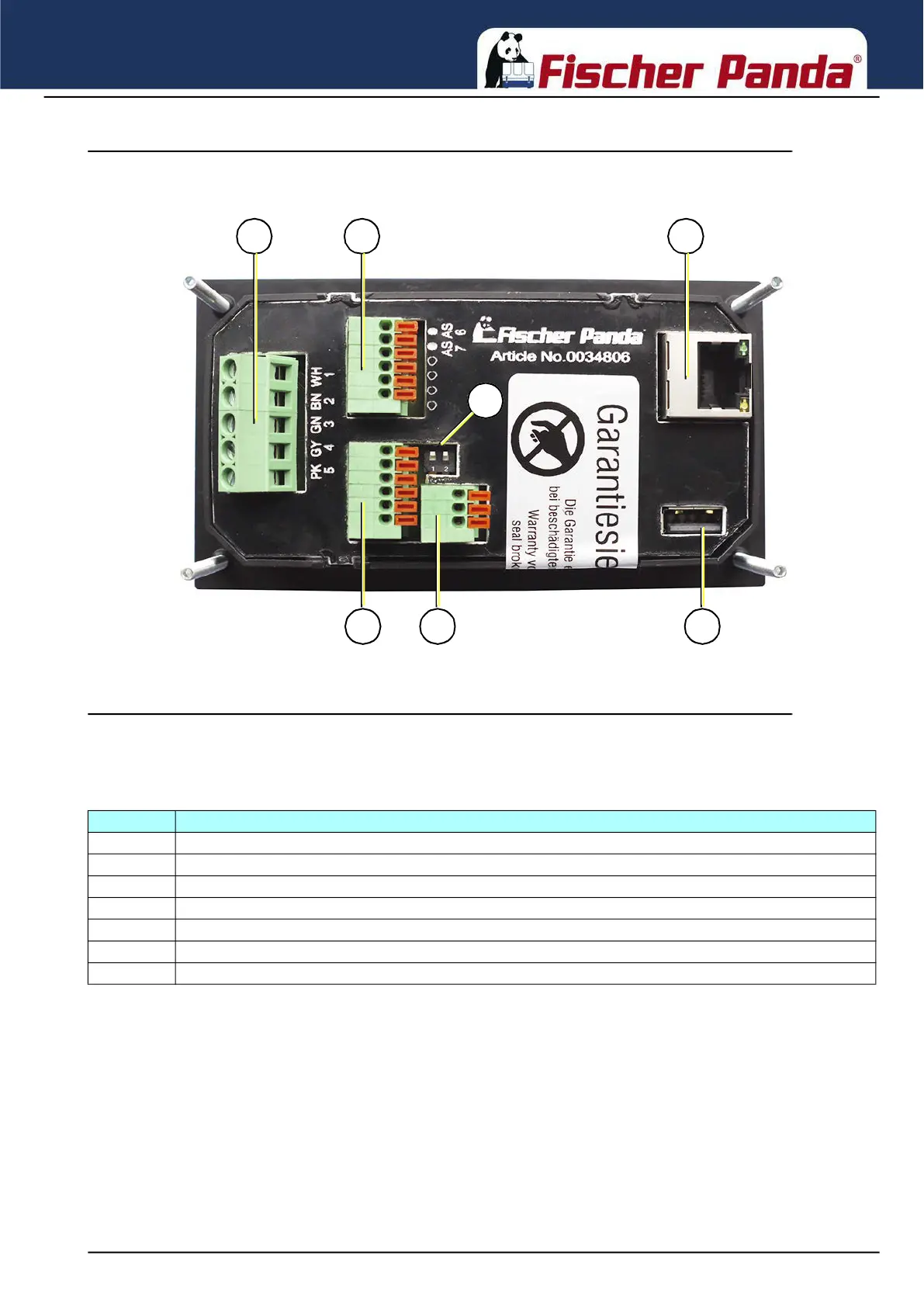

Fig. 4.2.2-1: Connectors and DIP switch of the iControl3 panel

Connector Function

1 5-pin Phoenix socket for panel connecting cable

2 Automatic start (pins AS 6 and AS 7)

3 Network, for example Ethernet (for future use)

4 USB (for future use)

5 Double DIP switch, switching on/off the terminating resistors for CAN bus 1 and CAN bus 2

6 Fischer Panda CAN Bus 2, CAN interface, j1939 based »fpCAN« (for future use)

7 3 universal outputs (for future use)

030201

040607
