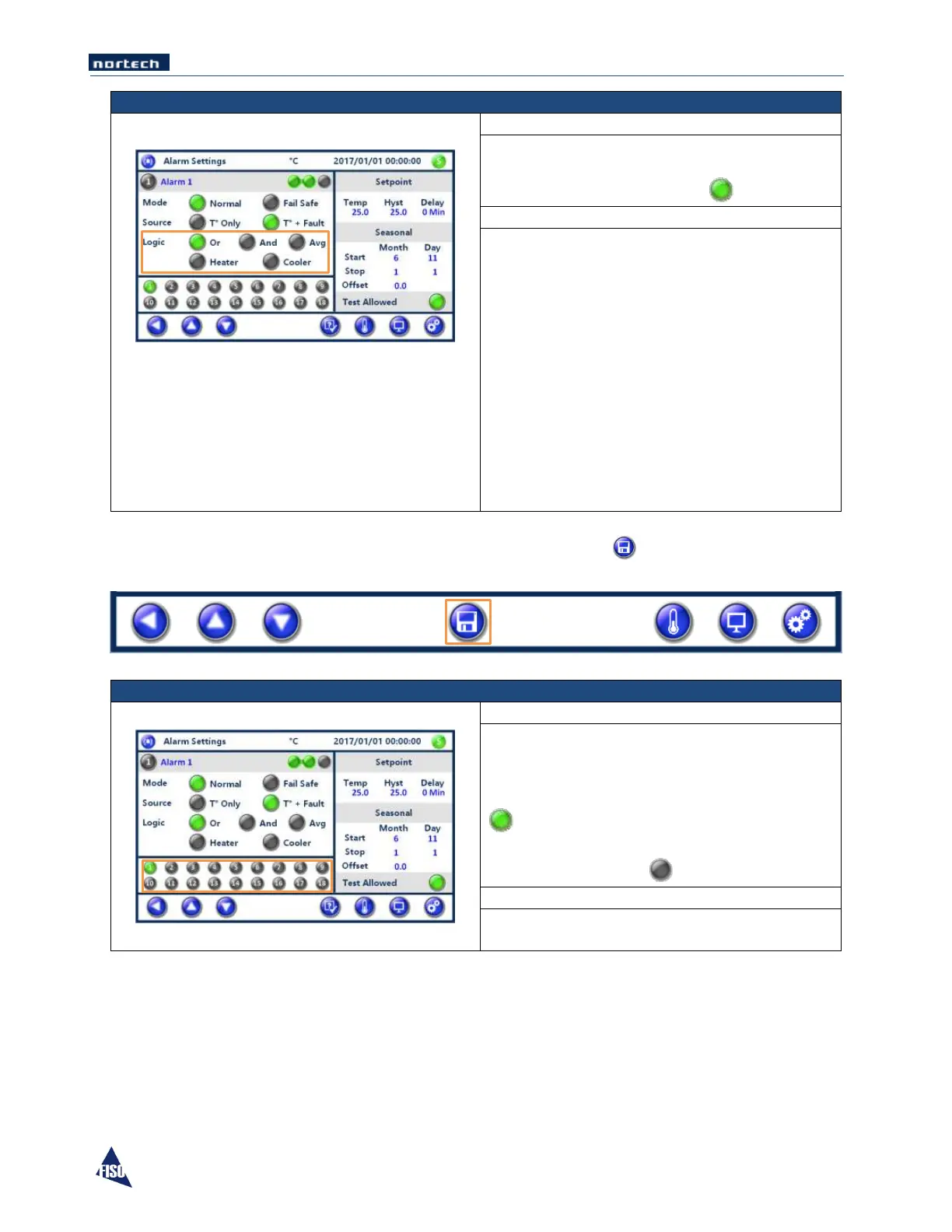

Select the logic used to control the relay by
pressing on the desired option. The active
option icon will then turn green .
OR: Condition is met when ANY of the selected
channels temperature is ABOVE the Setpoint.
AND: Condition is met when ALL of the selected
channels temperature are ABOVE the Setpoint.
AVERAGE: Condition is met when the AVERAGE
temperature of the selected channels is ABOVE
the Setpoint.
HEATER CONTROL: Condition is met when the
EasyGrid Internal temperature is BELOW the
Setpoint.
COOLER CONTROL: Condition is met when the
EasyGrid Internal temperature is ABOVE the
Setpoint.
NOTE: After a parameter is created or modified, remember to press the button when prompted,
before leaving the active screen so that the parameter is stored or the action executed.
Select channels used for the operation of the
relay by pressing the channel number icons. A
single, multiple or all channels can be selected.
The selected channel icons will then turn green
.
To unselect a channel, press on the desired icon,
it will turn back to grey .
A single, multiple or all temperature channels
can be selected.
